CFX 75 | Chemical Pump

CFX75 - Product ImageCFX75 End Suction - Performance (1)CFX75 End Suction - Performance (2)

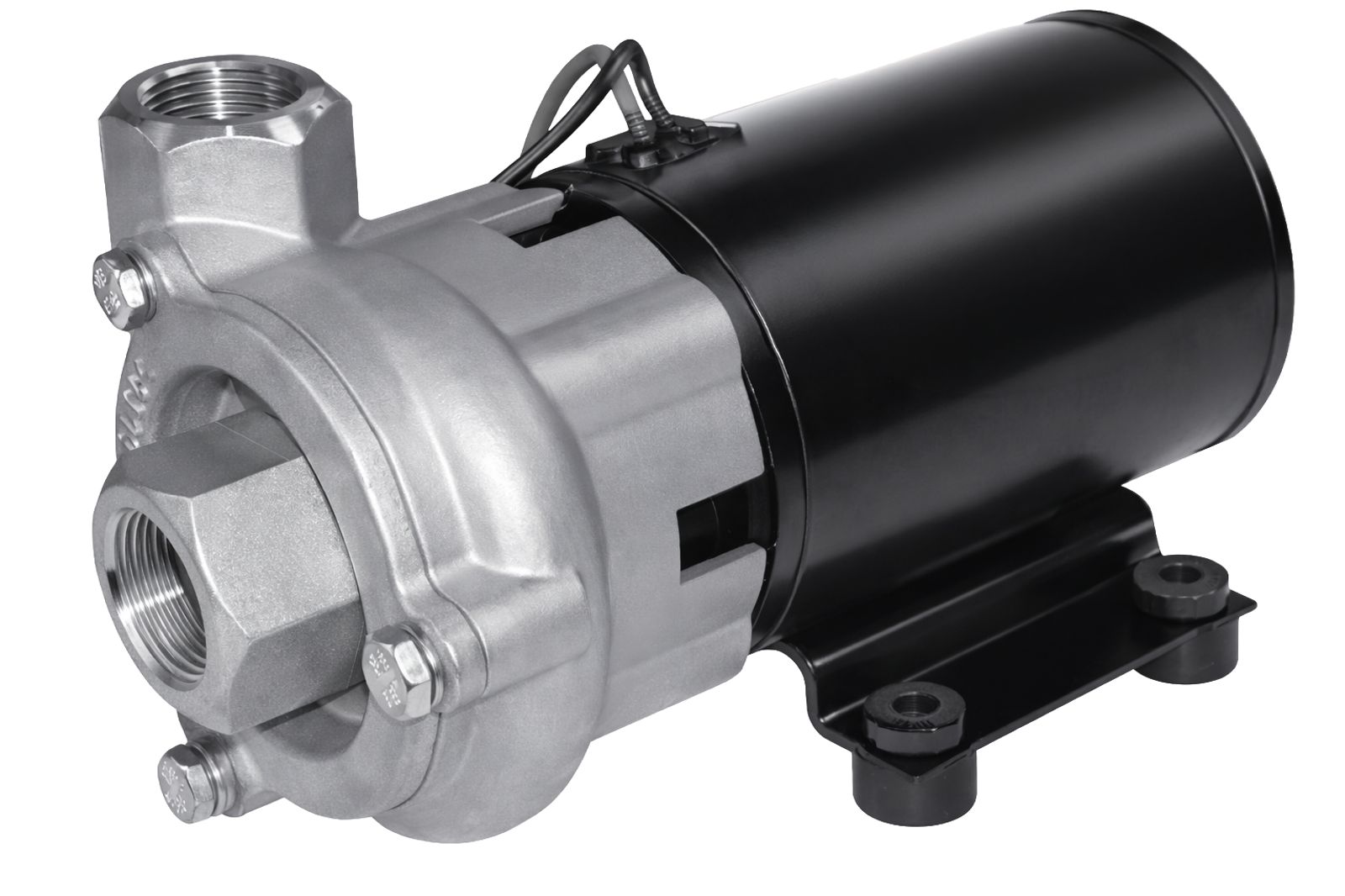

CFX75 - Product Image

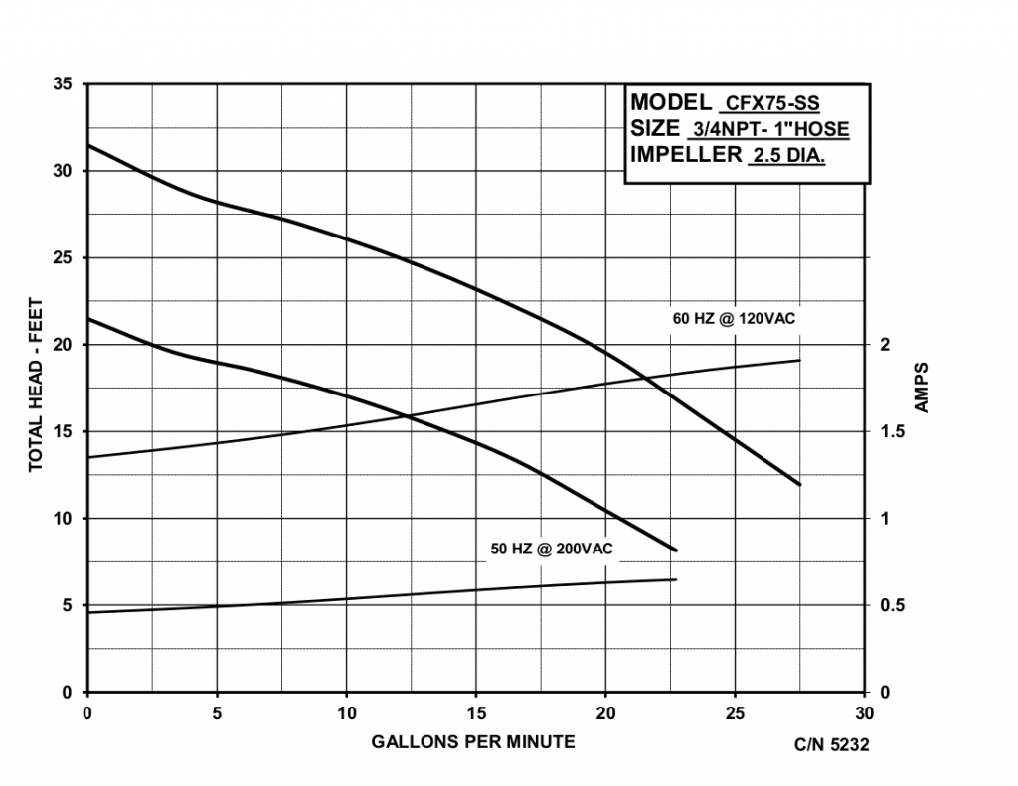

CFX75 End Suction - Performance (1)

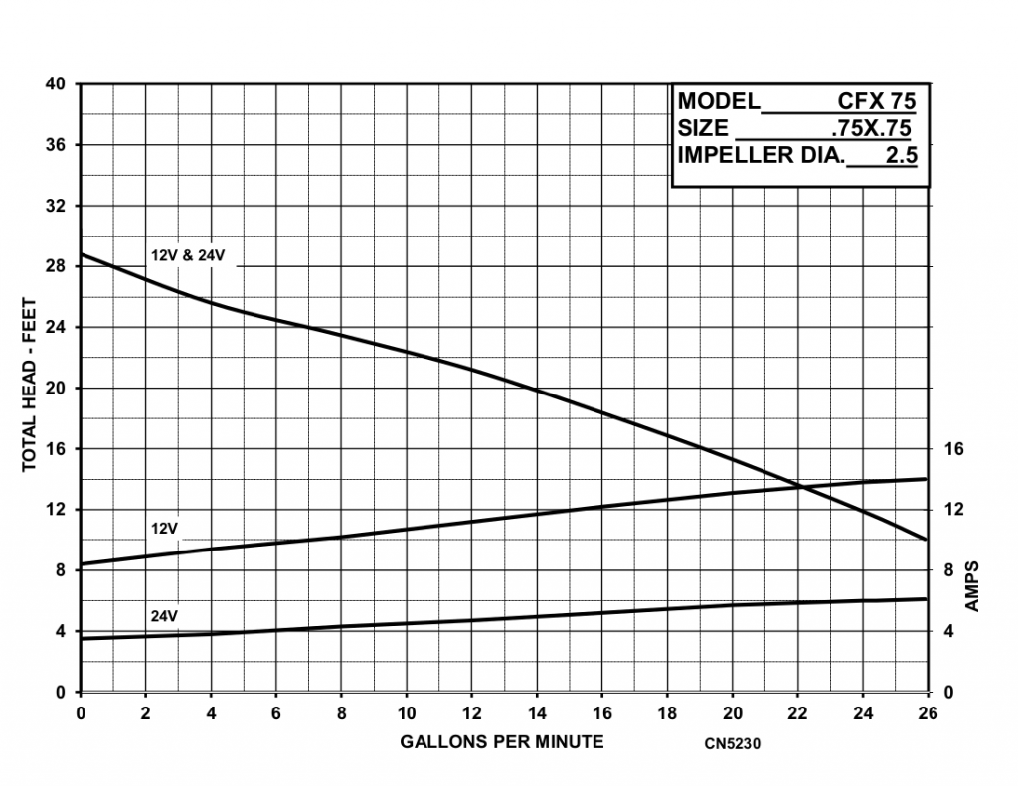

CFX75 End Suction - Performance (2)

The CFX75 end‑suction centrifugal pump is engineered for dependable fluid transfer across demanding industrial, marine, agricultural, and commercial environments. Constructed from robust 316 stainless steel, it ensures long‑term performance, exceptional corrosion resistance, and reliable operation even in chemically aggressive applications.



*The online store fulfills orders only within the USA.
Shop Now*
Request A Quote
Request A Service

Product Overview

The MP Pumps CFX75 is a 3/4" x 3/4" end‑suction centrifugal pump designed to deliver superior hydraulic performance in compact system configurations. Its 316 stainless steel housing and semi‑open impeller (sintered PM) provide excellent structural integrity and durability, allowing the pump to handle fluids with particulates while maintaining smooth flow characteristics. The pump delivers flow rates up to 28 GPM (6.35 m³/h) and heads up to 32 ft (10 m), making it suitable for both high‑circulation and moderate‑pressure requirements.

The CFX75 comes equipped with a standard carbon/ceramic/Viton bellows seal rated to 150 PSI (10 bar), ensuring leak‑free and stable operation even in continuous‑duty applications. Its premium materials offer outstanding resistance to aggressive chemicals, seawater, and other corrosive media, expanding its suitability across multiple industries.

For maximum integration flexibility, the CFX75 supports a full range of close‑coupled motor configurations, including 115V AC, 230V AC, 12V DC, and 24V DC power options. Marine‑grade ignition‑protected motors compliant with ISO 8846 standards further enhance safety in potentially hazardous marine environments. These configurations make the CFX75 an adaptable solution for both mobile and stationary applications, from OEM installations to industrial fluid circulation systems.

Features and Benefits

Key Features

  • 316 stainless steel construction for maximum corrosion resistance.
  • Semi‑open stainless‑steel impeller for improved solids handling and optimized hydraulic efficiency.
  • Flow up to 28 GPM / 6.35 m³/h for versatile performance across applications.
  • Head capability up to 32 ft / 10 m ensuring stable pressure and system performance.
  • Multiple drive options: 115V AC, 230V AC, 12V DC, 24V DC.
  • ISO 8846 ignition‑protected motors for marine environment compliance.
  • Carbon/ceramic/Viton bellows seal rated to 150 PSI (10 bar) with optional special seals.

Benefits

  • Long service life in corrosive or chemically aggressive environments.
  • Flexibility in system design thanks to a wide selection of AC and DC motor options.
  • Enhanced operational safety for marine applications due to ignition‑protected motor construction.
  • Reduced downtime with reliable sealing and robust hydraulic design.
  • Versatile installation suitable for OEMs, transportation systems, industrial setups, and marine vessels.

Specifications



Suction / Discharge 3/4" NPT x 3/4" NPT
Materials of Construction 316 stainless steel
Flow Up to 28 GPM (6.35 m3/h)
Head Feet Up to 32' (10 m)
Impeller 316 Stainless steel, Semi-Open (Sintered PM)
Motor ISO 8846 motor available
Drive Options Close coupled 115V AC Close coupled 230V AC Close coupled 12V DC Close coupled 24V DC
Seal Standard carbon/ceramic/Viton Bellows 150 PSI (10 bar) Special seals upon request
