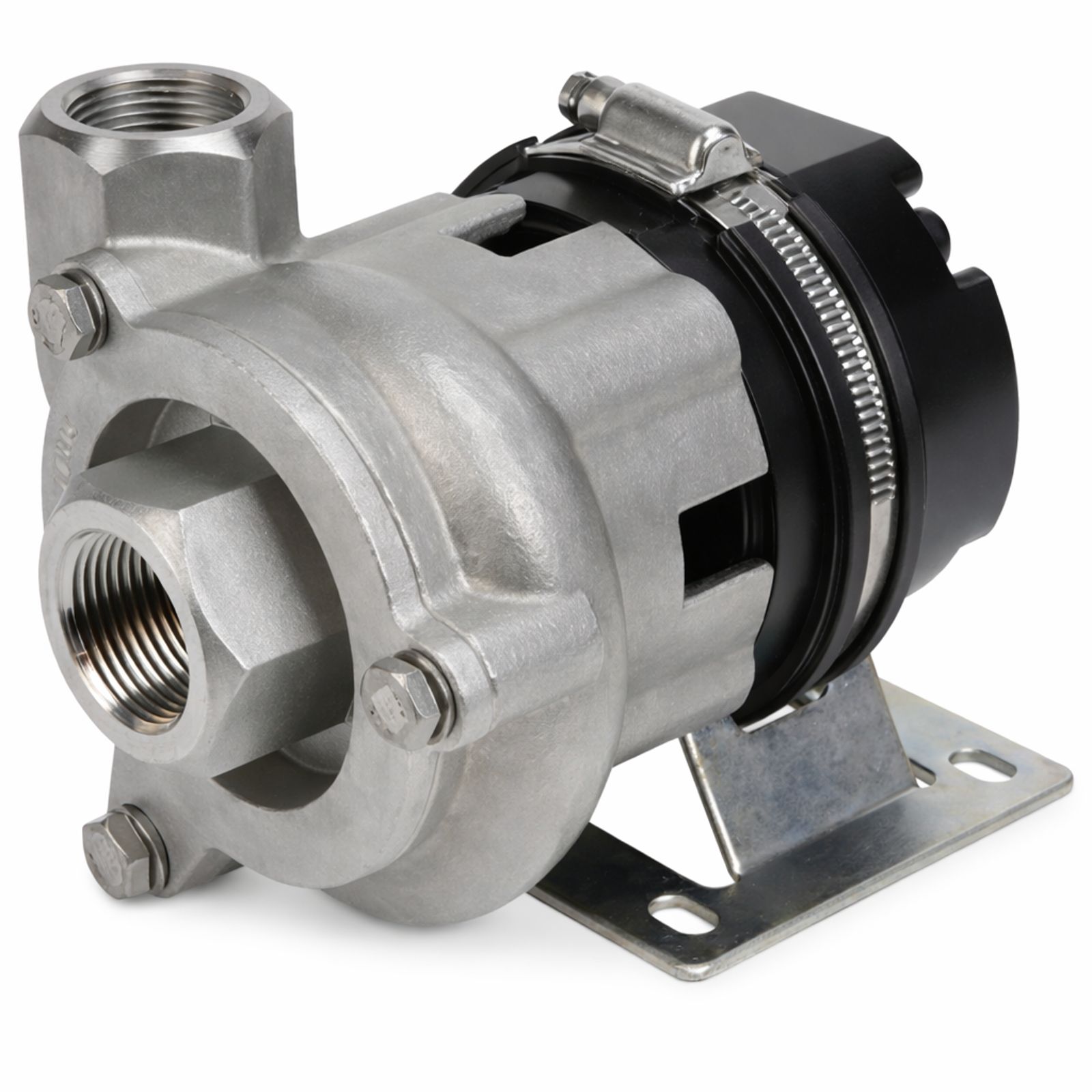

CFX 75 Hydraulic | Chemical Pump

The CFX75 Hydraulic is built around a precision‑engineered 3/4" x 3/4" NPT end‑suction configuration, optimizing flow characteristics while maintaining a compact footprint suitable for confined mounting spaces. Its hydraulically driven design is powered by a durable 0.08 cu in (1.3 cm³) hydraulic motor, enabling seamless integration with hydraulic circuits commonly found in industrial, transport, and agricultural machinery. With hydraulic fluid requirements up to 3 GPM (0.6 m3/h) and system pressures reaching 1250 PSI (86 bar), the pump delivers consistent performance in demanding, continuous‑operation environments.

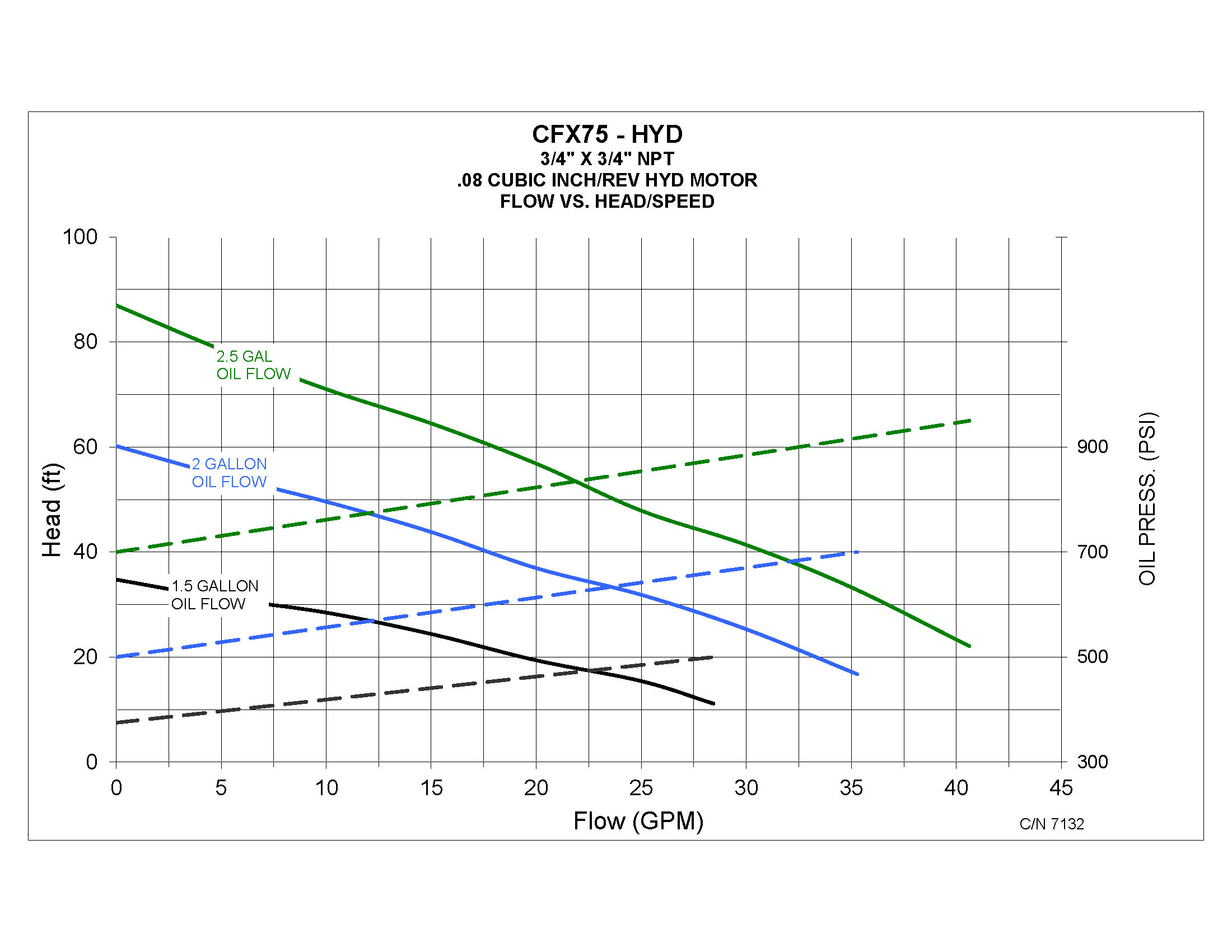

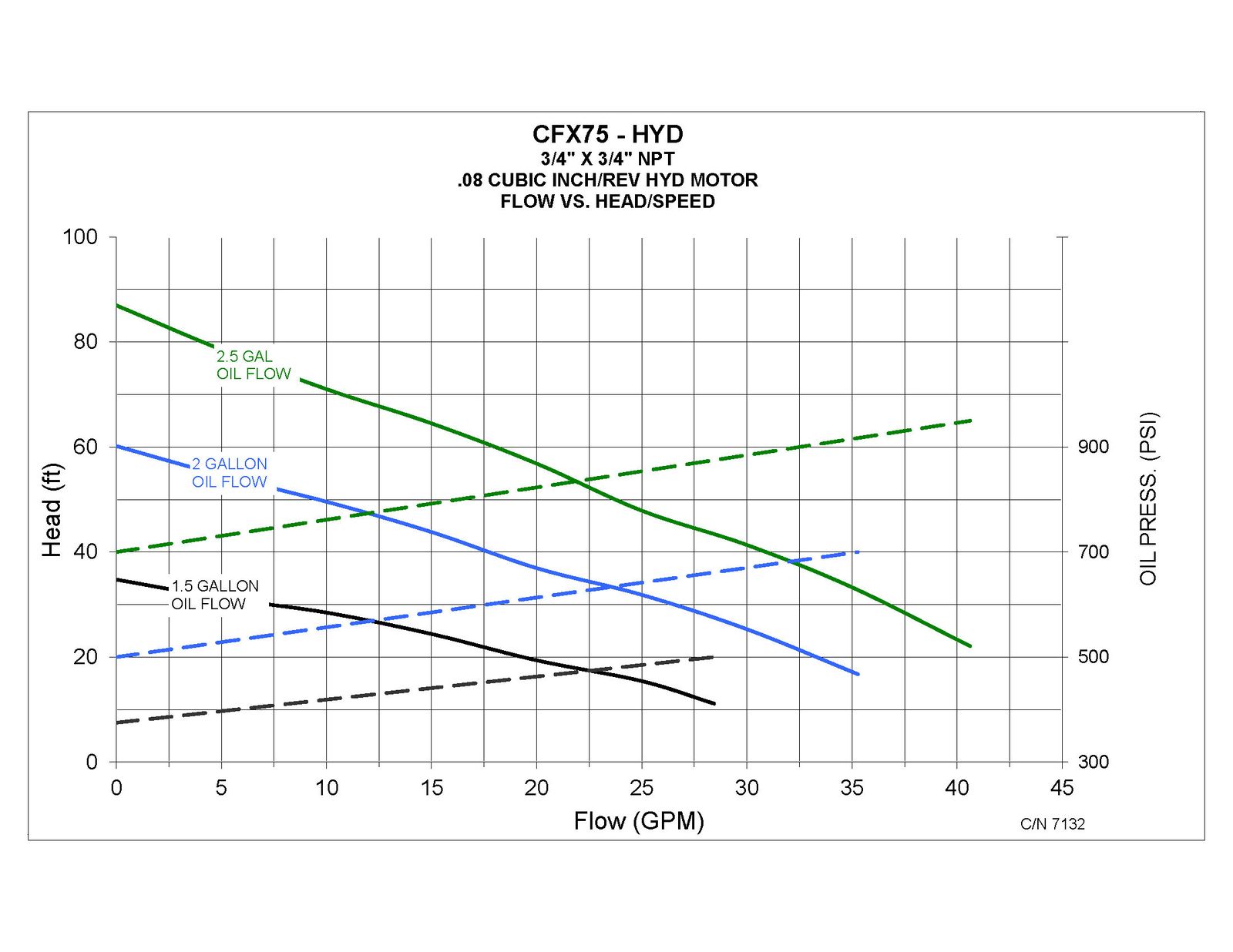

At the heart of the unit is a semi‑open impeller manufactured from sintered PM 316 stainless steel, offering high resistance to abrasion, chemical exposure, and mechanical stress. This impeller design enhances the pump’s ability to handle solids‑laden or viscous media while maintaining stable hydraulic efficiency. The pump delivers flow rates up to 46 GPM (10 m3/h) and generates heads up to 125 ft (38 m), making it ideal for both high‑volume transfer and moderate‑pressure applications.

The pump housing and wetted components constructed from 316 stainless steel provide superior corrosion resistance, especially valuable in marine or chemically aggressive environments. A standard carbon/ceramic/Viton bellows mechanical seal ensures reliable shaft sealing and compatibility with a wide range of fluids; optional special‑application seals are available for customized needs.

To simplify installation, the discharge port can be rotated in 90° increments, allowing the pump to adapt to complex layout constraints. The combination of hydraulic drive compatibility, corrosion‑resistant materials, and application versatility positions the CFX75 Hydraulic as a long‑term, high‑performance fluid transfer solution.
