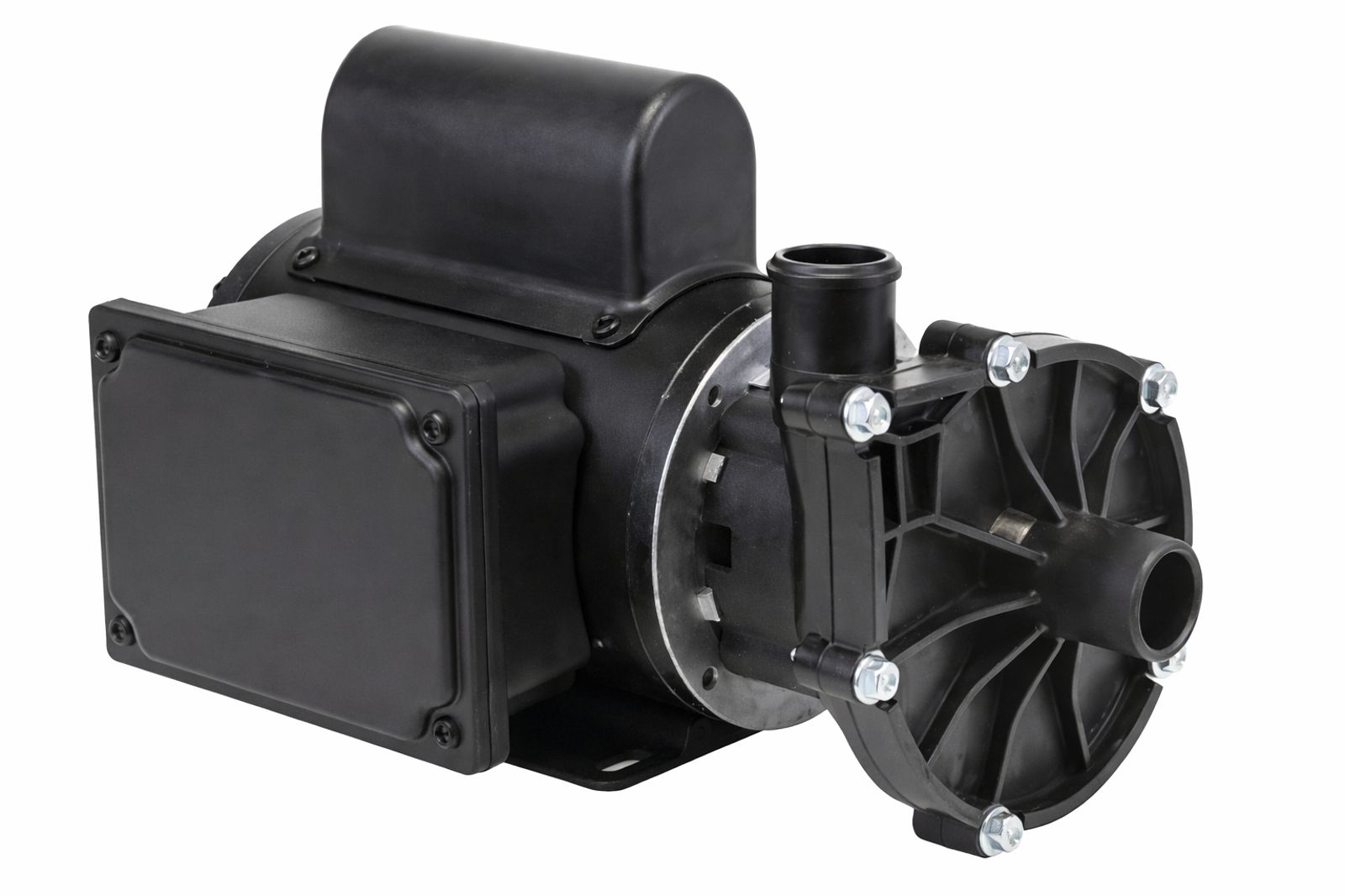

CFX 75 P | Chemical Pump

The MP Pumps CFX75 P is an advanced end-suction centrifugal pump engineered to deliver reliable, efficient, and consistent performance in demanding fluid-handling environments. Designed for use across marine, agricultural, commercial, and industrial sectors, it combines robust construction with excellent chemical resistance, ensuring long-lasting operation even under challenging conditions.

Request a Quote

Request Service

Product Overview

The CFX75 P is built around a corrosion‑resistant Polyphenylene Sulfide (PPS) housing and cover, offering exceptional structural stability and compatibility with a wide range of fluids. Its semi-open 316 stainless-steel impeller – manufactured using sintered powder metal technology – ensures optimal hydraulic performance, reduced clogging risk, and reliable operation in both clean and lightly contaminated media.

A key feature of the pump is its carbon/ceramic/Viton bellows mechanical seal, engineered for pressures up to 150 PSI (10 bar), supporting continuous duty in high-temperature environments up to 220°F (104°C). The pump uses 1-inch hose connections and provides 90° rotational flexibility for simplified installation across different mounting configurations.

The CFX75 P is available with AC (115 VAC, ODP or TENV) and DC (12 VDC, 24 VDC) motor options. Marine-grade ignition-protected motor variants ensure safety in environments where fuel vapors or flammable atmospheres may be present.

With a maximum head of 30 feet (9 meters) and lightweight design – 13 lbs (5.9 kg) with AC motor or 7.5 lbs (3.4 kg) with DC motor – the CFX75 P delivers an excellent power-to-weight ratio. This makes it an effective choice for mobile systems, onboard vessels, agricultural sprayers, circulation systems, and general fluid transfer applications.

Features and Benefits

Features

PPS housing and cover for outstanding chemical and corrosion resistance
316 stainless-steel semi-open impeller (sintered PM) for durable, smooth flow performance
Carbon/ceramic/Viton bellows seal suitable for 150 PSI operation
1" hose connections with 90° rotational adjustability
AC and DC motor compatibility, including ignition-protected versions for marine use
Temperature rating up to 220°F (104°C)
Lightweight construction for easy system integration

Benefits

Extended service life in corrosive, chemically aggressive, or challenging environments
Improved reliability due to robust sealing and durable impeller design
Flexible installation in compact or non-standard system layouts
Versatile application range across multiple industries
Safe operation in marine and hazardous atmospheres
Energy-efficient performance supported by optimized hydraulic design

Specifications

Port Sizes	1" Hose Connections
Impeller	316 Stainless steel, Semi-Open (Sintered PM)
Motor	115VAC, ODP and TENV 12VDC 24VDC
Seal	Special seals upon request, Standard carbon/ceramic/Viton Bellows 150 PSI (10 bar)
Cover	Polyphenylene Sulfide
O Ring	Viton, EPDM
Housing	Polyphenylene Sulfide
Temperature	To 220°F (104°C)
Weights	Pump W/AC Motor 13 lbs. (5.9 kg) Pump W/DC Motor 7.5 lbs. (3.4 kg)

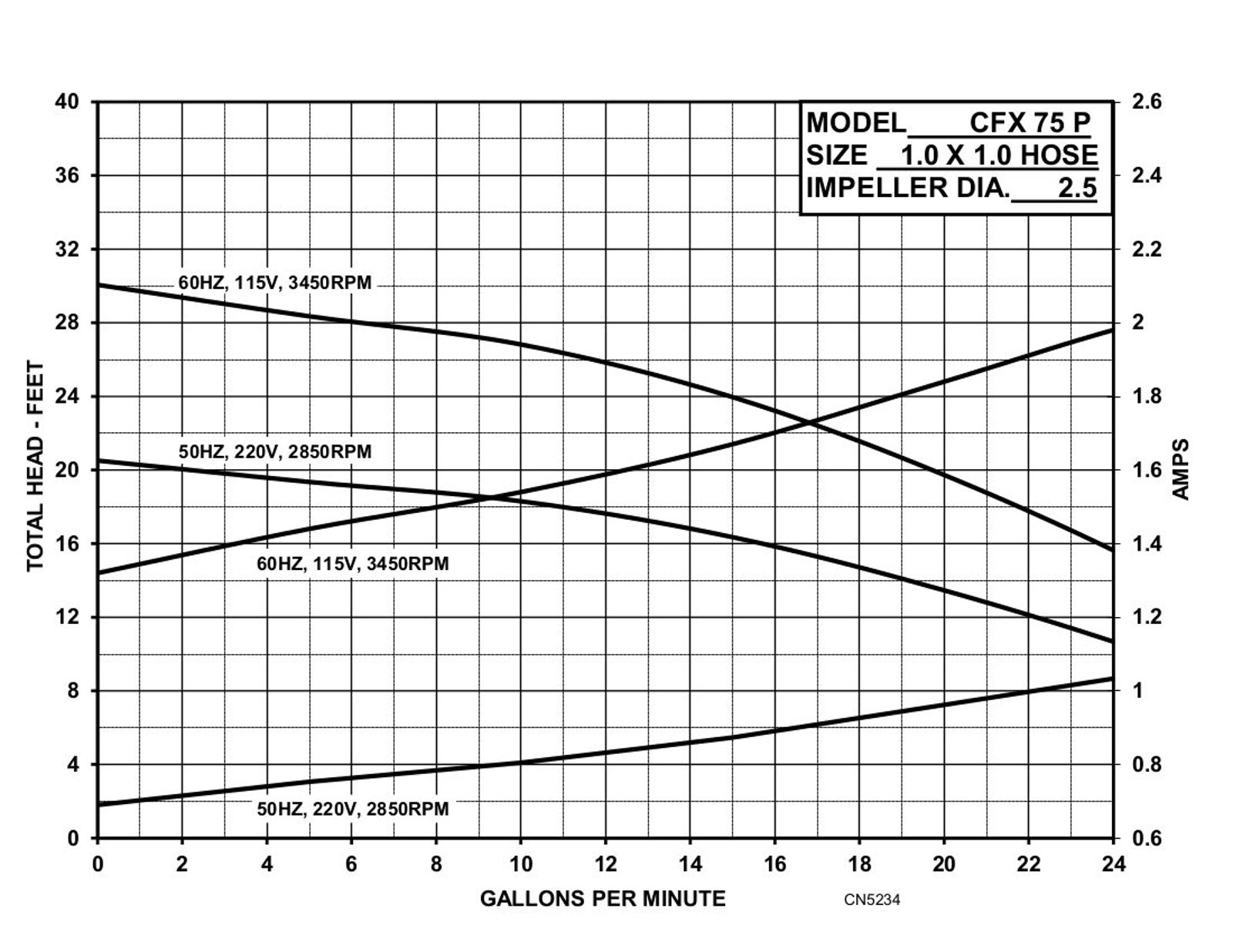

Head Feet	Up to 30' (9 m)
