CFX 75 H | Hose Connection Chemical Pump

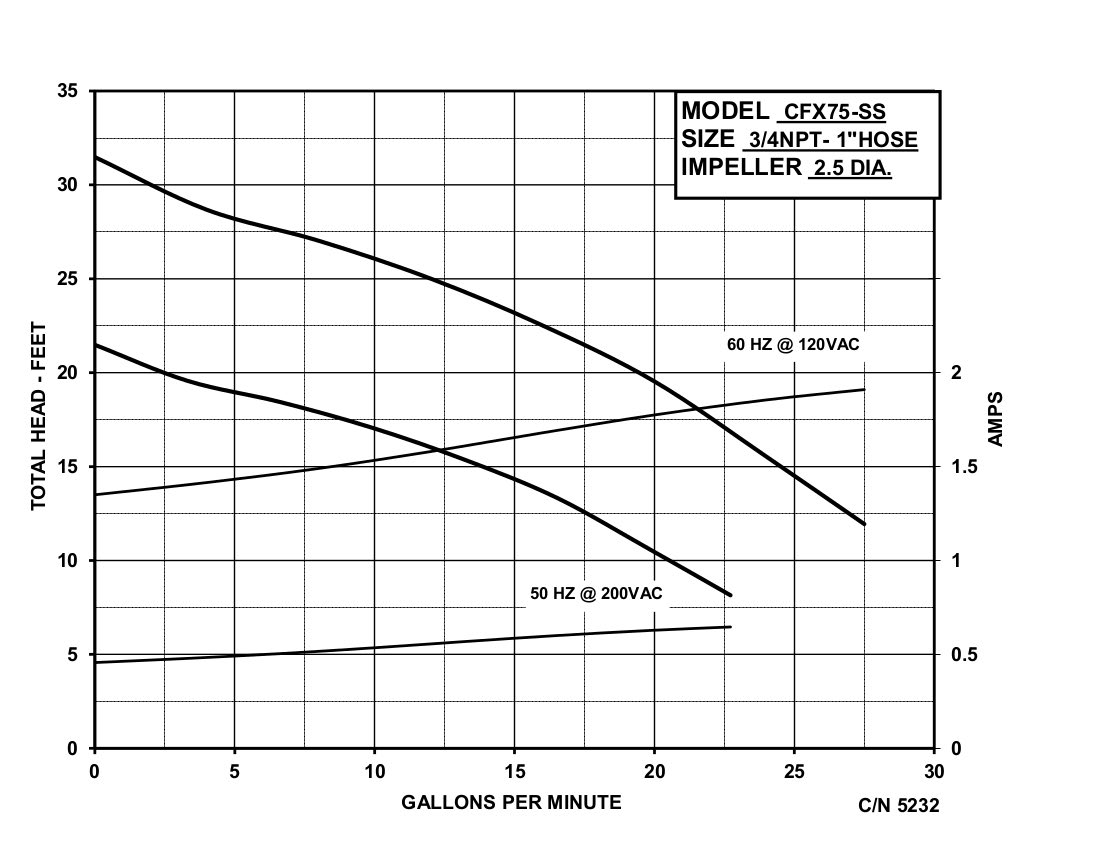

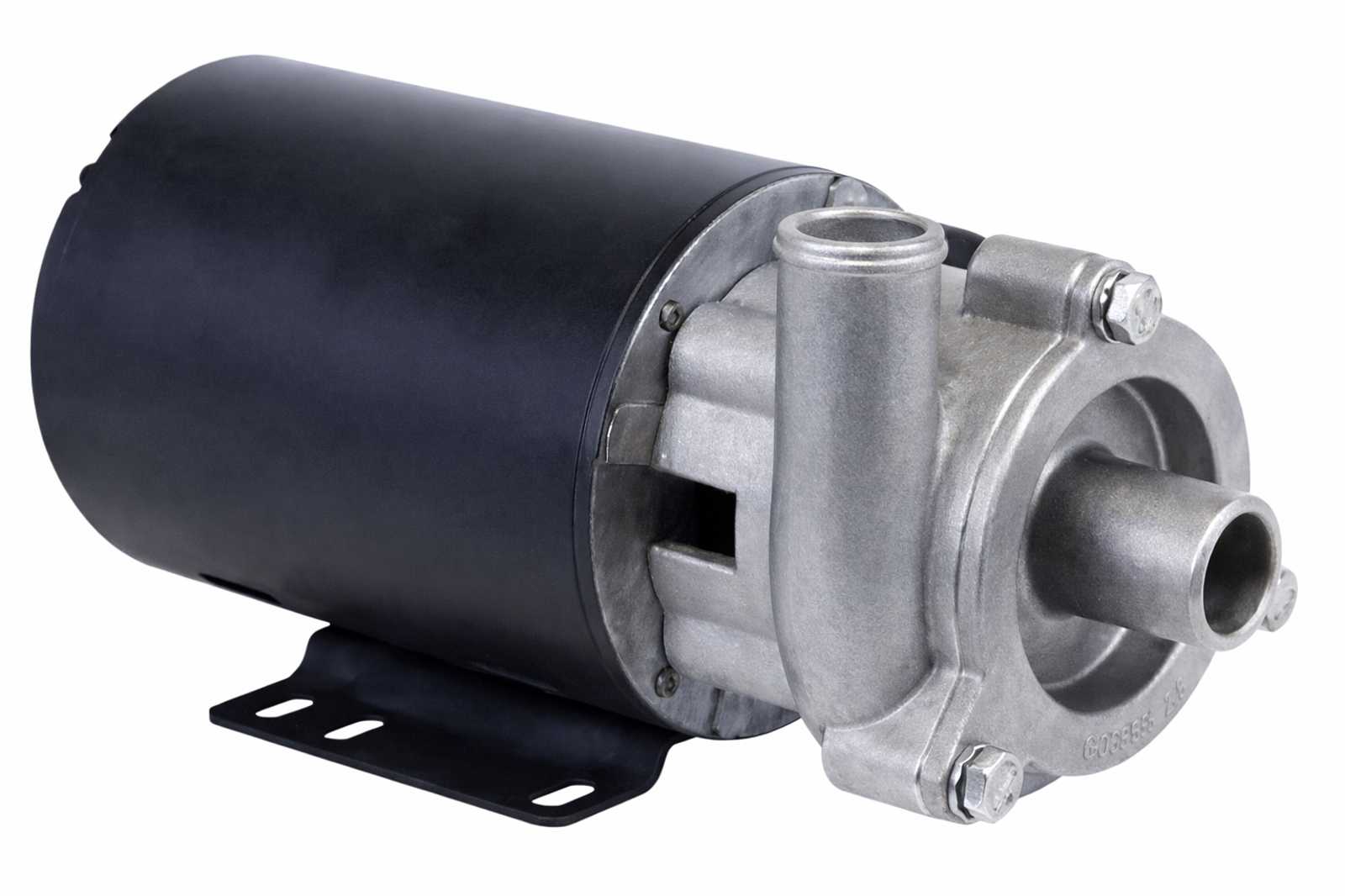

The CFX 75 H is built around a corrosion‑resistant 316 stainless steel housing and cover, both investment‑cast for exceptional structural integrity. Its semi‑open impeller, precision‑manufactured from sintered 316 stainless steel, ensures smooth and efficient fluid movement while handling a variety of compatible liquids. The pump supports flows up to 28 GPM (6 m³/h) and heads up to 32 ft (10 m), making it suitable for both low‑ and medium‑pressure transfer systems.

A carbon/ceramic/Viton bellows‑type mechanical seal rated for 150 PSI (10 bar) provides dependable leak protection, even in harsh operating conditions. Optional special‑seal configurations enable customization for unique media or process requirements. Viton O‑rings enhance chemical compatibility and long‑term sealing stability.

The CFX 75 H offers flexible installation thanks to ports that can be rotated in 90‑degree increments, allowing operators to fit the pump into tight or complex system layouts. Multiple drive configurations – including 12 VDC, 115 VAC ODP, and a hydraulic option with 0.08 displacement – support both mobile and stationary installations. Despite its durable build, the pump maintains manageable weight, ensuring ease of handling during installation and maintenance.
