PETROLEUM 120 | S Series | End Suction Centrifugal Pump (2" x 1-1/2")

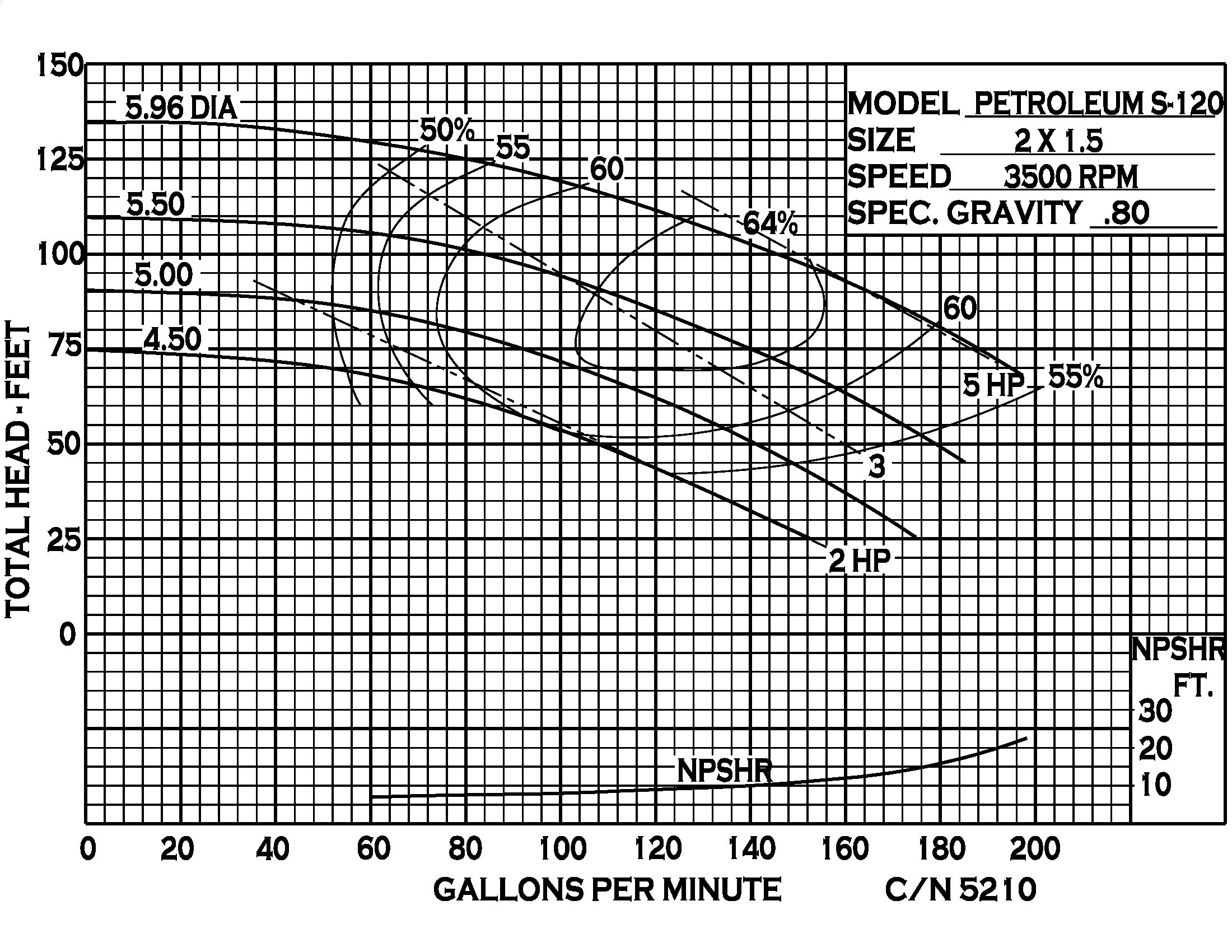

The Petroleum 120 features a semi‑open impeller optimized for efficient movement of clean petroleum liquids. Its hydraulic design supports flows up to 200 GPM (45.4 m³/h) and heads up to 135 ft (41 m), making it suitable for transfer, circulation, and loading duties. The pump includes 2" x 1½" 150‑lb flanged connections, enabling straightforward integration with standard piping systems.

The model is available as a close‑coupled unit for 184TC frame motors, a pedestal configuration, or a PumPAK® option without motor for OEM flexibility. The casing can be rotated in 90° increments, allowing discharge positioning to match installation requirements.

Material and sealing combinations are tailored to each model:

• SE 120: Cast‑iron semi‑open impeller; carbon/silicon‑carbide/Viton® seal; suitable for ethanol and E85.
• SG 120: Aluminum semi‑open impeller; carbon/silicon‑carbide/Viton® seal; suited for gasoline, kerosene, avgas, and jet fuel.
• SO 120: Cast‑iron semi‑open impeller; carbon/ni‑resist/Viton® seal; ideal for biodiesel, fuel oil, and diesel.

Motor options include explosion‑proof Class I, Group D on SE and SG models, and TEFC for the SO model. With power requirements up to 7.5 hp (5.5 kW), the pump provides a robust performance envelope across operational ranges.

Features & Benefits

• Three model variants designed for specific petroleum‑based fluids.
• High hydraulic performance with up to 200 GPM and 135 ft of head.
• ANSI‑style flanged ports for simplified installation and service.
• Multiple mounting configurations, including close‑coupled, pedestal, and PumPAK®.
• 90° adjustable casing for flexible discharge orientation.
• Durable mechanical seals with Viton® elastomers for excellent chemical resistance.
• Explosion‑proof motor options for hazardous environments (SE & SG).
• Non‑spark clamp for enhanced operational safety.
• Versatile application range, including agricultural, industrial, marine, and OEM systems.
