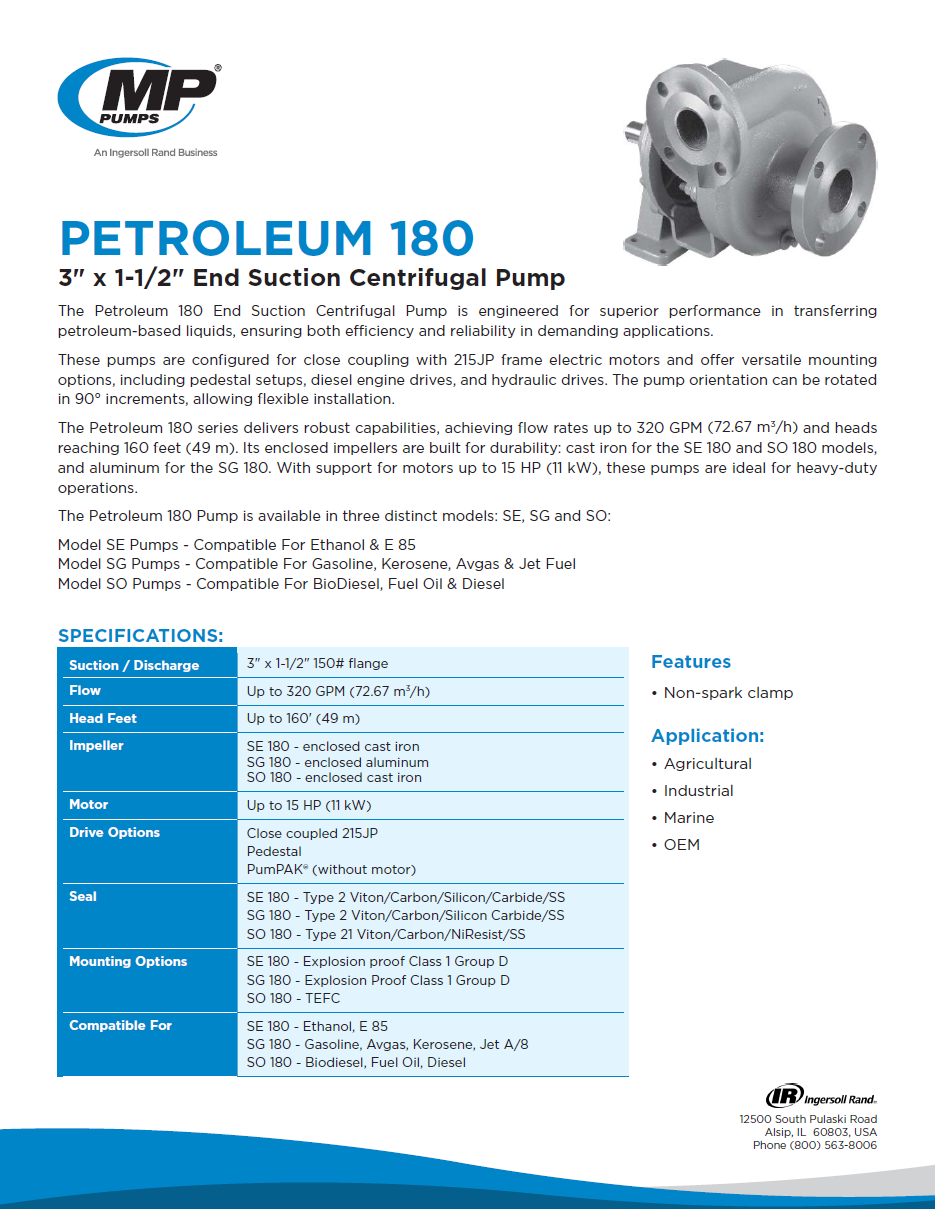

PETROLEUM 180 | S Series | End Suction Centrifugal Pump (3" x 1-1/2")

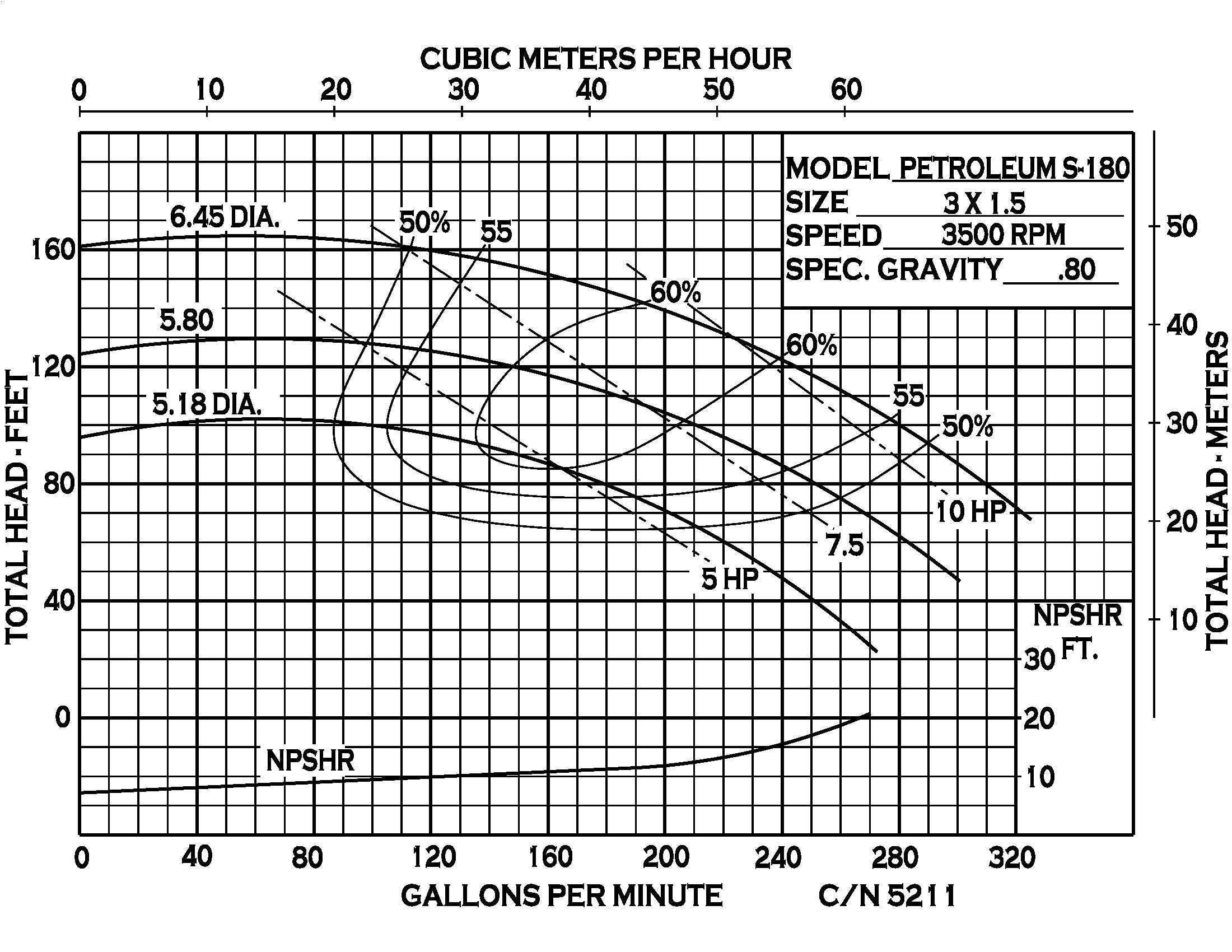

The Petroleum 180 features a 3" x 1‑1/2" 150‑lb flanged suction and discharge arrangement, providing strong hydraulic performance with flow rates up to 320 GPM (72.67 m³/h) and heads reaching 160 ft (49 m). Its enclosed impeller design – available in cast iron or aluminum depending on the model – ensures durability, efficiency, and compatibility with a wide range of fuels.

This pump can be close‑coupled to a 215JP‑frame electric motor or mounted on a pedestal for use with diesel engines, hydraulic drives, or other custom power sources. For simplified system integration, the pump casing can be rotated in 90‑degree increments, making it easy to align with existing piping in confined or complex installations.

Three engineered variants allow precise matching to the intended fuel type:

• SE 180 – optimized for Ethanol and E85
• SG 180 – configured for Gasoline, Avgas, Kerosene, Jet A/8
• SO 180 – tailored for Biodiesel, Fuel Oil, and Diesel

Each model features seals and materials selected specifically for its fluid compatibility. With a motor capability up to 15 HP (11 kW), the Petroleum 180 is well‑suited for heavy‑duty applications such as fuel transfer skids, marine fueling systems, and industrial fluid handling.

Features & Benefits

• High hydraulic capacity – Up to 320 GPM and 160 ft of head for demanding transfer operations.
• Fuel‑specific models – SE, SG, and SO versions with tailored materials and seals for dependable fluid compatibility.
• Durable enclosed impellers – Cast iron or aluminum designs for long service life and consistent performance.
• Versatile mounting options – Close‑coupled, pedestal, diesel‑driven, hydraulic‑driven, or PumPAK® pump‑end.
• Casing rotation in 90° increments – Simplifies installation in tight system layouts.
• Up to 15 HP motor support – Provides strong power handling for continuous‑duty applications.
• Non‑spark clamp – Enhances safety in hazardous fuel environments.
• Hazard‑rated options – Explosion‑proof Class I, Group D configurations (SE and SG) and TEFC motors (SO).
• Broad application compatibility – Suitable for industrial, marine, agricultural, and OEM systems.
