PETROLEUM 60 | S Series | End Suction Centrifugal Pump (1 1/4" X 1")

Petroleum 60 - Product ImagePetroleum 60 - Performance (1) 5208

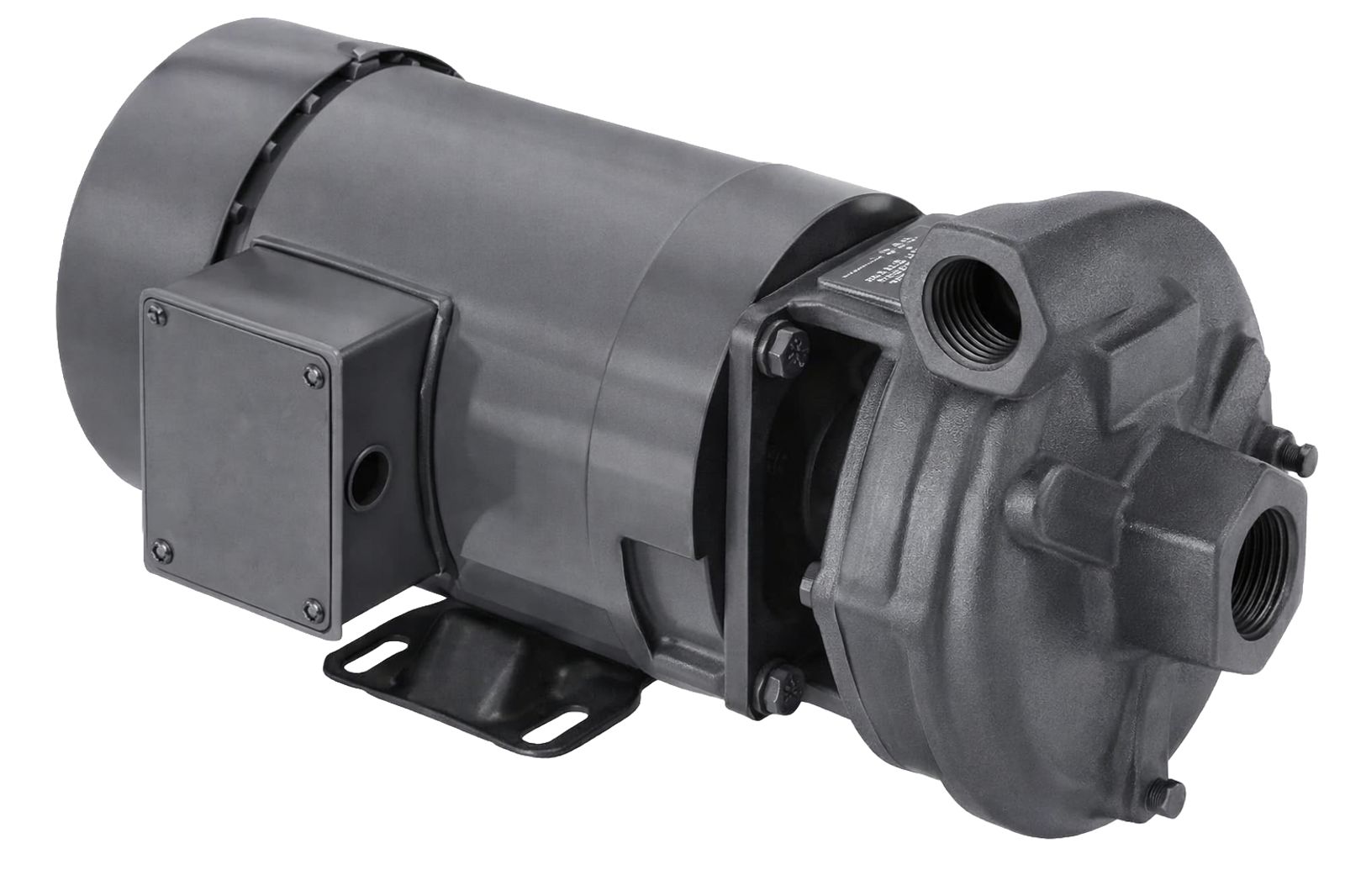

Petroleum 60 - Product Image

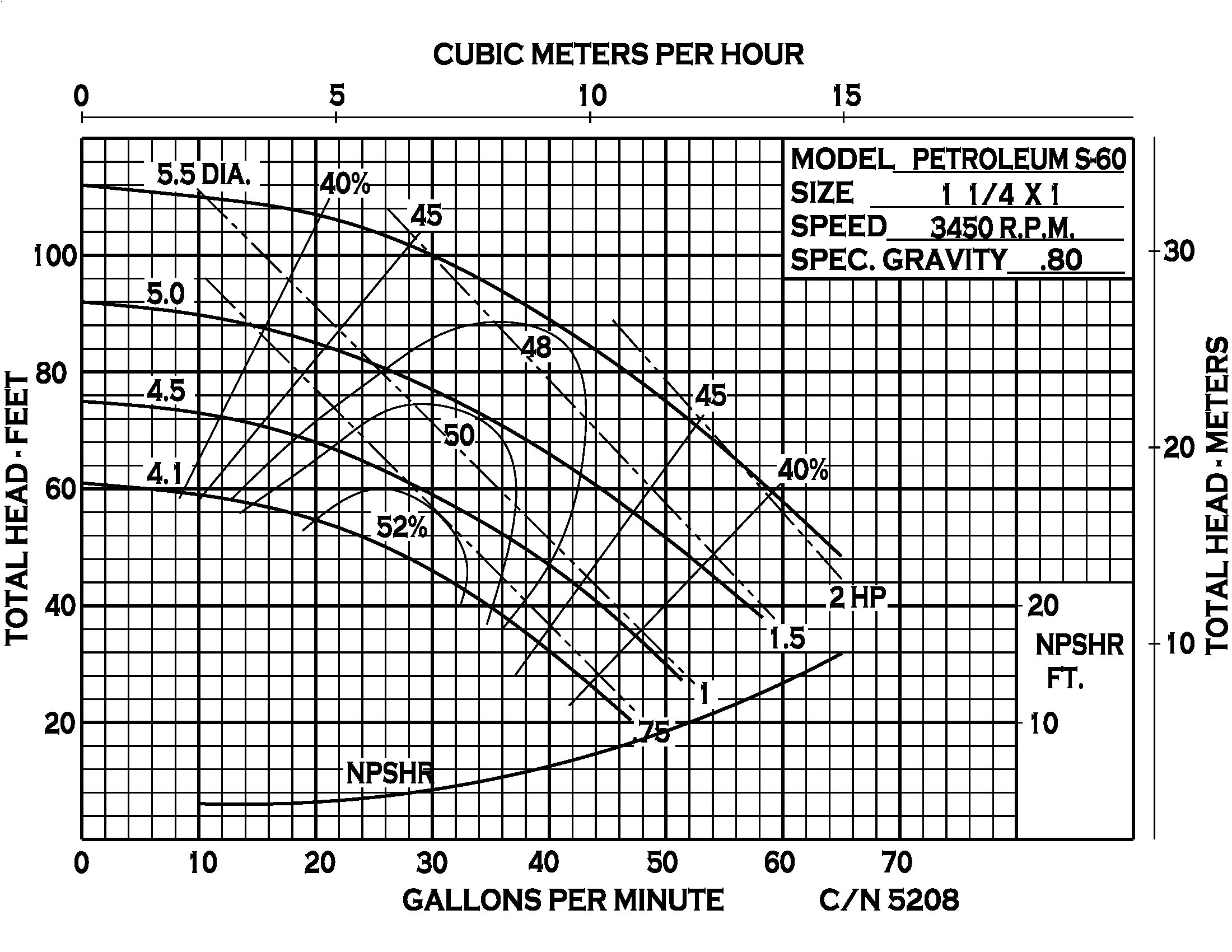

Petroleum 60 - Performance (1) 5208

The MP Pumps Petroleum 60 series is a high‑efficiency end‑suction centrifugal pump line designed for reliable transfer of petroleum‑based liquids. Created to support industrial, agricultural, marine, and OEM applications, the pump offers strong performance, durability, and compatibility with a broad range of fuels. The series includes three targeted models – SE, SG, and SO – each engineered for specific fluid types such as ethanol blends, gasoline derivatives, and diesel fuels.

Contact Us
Request a Quote
Request Service

Product Description

The Petroleum 60 series is built for demanding petroleum‑handling environments, offering flow rates up to 65 GPM (14.73 m³/h) and maximum head capability of 115 ft (35 m). This combination ensures fast, smooth, and efficient transfer of low‑viscosity fuels. The pump is compatible with 56C and 145TC close‑coupled electric motors, as well as multiple hydraulic motor displacements, making it versatile for both fixed installations and mobile systems.

Each of the three models features materials and sealing systems designed for specific fluid compatibility:

  • SE 60: Enclosed cast‑iron impeller, Type 2 Viton/carbon/silicon‑carbide mechanical seal; compatible with Ethanol & E85.
  • SG 60: Enclosed aluminum impeller, Type 2 Viton/carbon/silicon‑carbide seal; compatible with Gasoline, Avgas, Kerosene, Jet A/8.
  • SO 60: Enclosed cast‑iron impeller, Type 21 Viton/carbon/niresist seal; compatible with Biodiesel, Fuel Oil & Diesel.The pump can be supplied in a PumPAK® configuration (pump without motor), enabling easy integration into OEM systems. The SE and SG models can be equipped with explosion‑proof motors (Class 1 Group D), while the SO version features a TEFC motor option for environments where flammable vapors are not present.

Features and Benefits

Key Features

  • High‑efficiency centrifugal design
  • Model‑specific chemical compatibility for ethanol, gasoline, jet fuels, diesel, and biodiesel
  • Motor options: 56C, 145TC, hydraulic drives, and PumPAK®
  • Enclosed impeller for stable hydraulic performance
  • Explosion‑proof motor options (SE & SG)
  • TEFC configuration for the SO model
  • Non‑spark clamp for increased safety

Benefits

  • Versatility: Dedicated versions for specific fuel types provide optimal performance and durability.
  • Safety: Explosion‑proof options and non‑spark components enhance operational safety when handling flammable liquids.
  • Performance: Strong flow and head ratings ensure effective fuel transfer in continuous‑duty or intermittent‑duty pumping systems.
  • Integration: Wide compatibility with electric and hydraulic drive options supports use in custom‑engineered systems.
  • Reliability: High‑quality sealing materials extend pump lifespan and reduce service requirements.

Specifications



Suction / Discharge 1-1 /4" x 1" NPT
Flow Up to 65 GPM (14.73 m3/h)
Head Feet Up to 115' (35 m)
Impeller

SE 60 - enclosed cast iron

SG 60 - enclosed aluminum

SO 60 - enclosed cast iron

Motor Up to 3 HP (2.2 kW)
Drive Options

Close coupled 56C

Close coupled 145TC

Hydraulic motor .37 cu. in. (6.1 cm³)

Hydraulic motor .45 cu. in. (7.4 cm³)

Hydraulic motor .58 cu. in. (9.5 cm³)

PumPAK® (without motor)

Seal

SE 60 - Type 2 viton/carbon/silicon carbide/SS

SG 60 - Type 2 viton/carbon/silicon carbide/SS

SO 60 - Type 21 viton/carbon/niresist/SS

Mounting Options

SE 60 - Explosion proof Class 1 Group D

SG 60 - Explosion proof Class 1 Group D

SO 60 - TEFC

Compatible For

SE 60 - Ethanol, E 85

SG 60 - Gasoline, Avgas, Kerosene, Jet A/8

SO 60 - Biodiesel, Fuel Oil, Diesel
