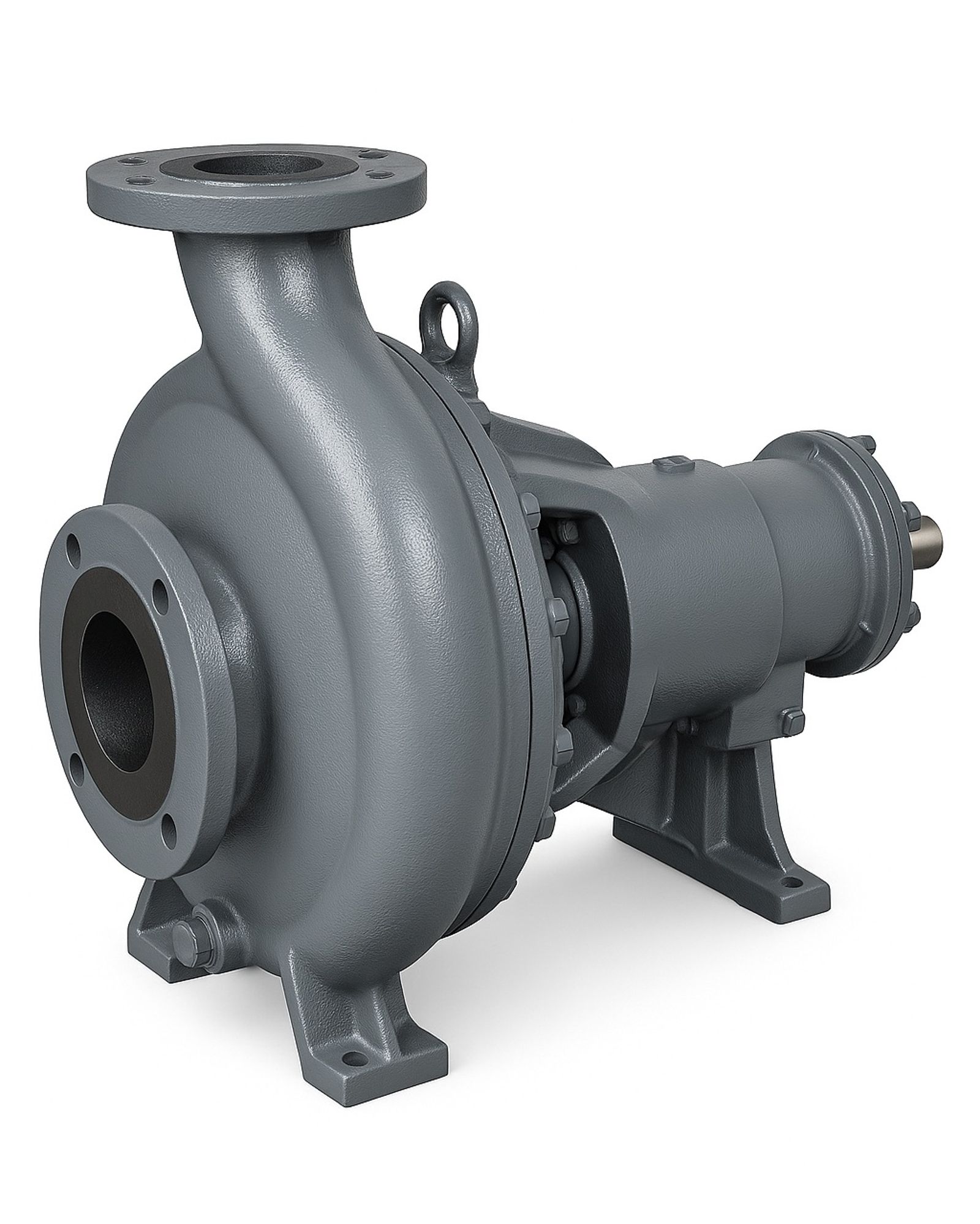

PETROLEUM 700 | S Series | End Suction Centrifugal Pump (4" x 3")

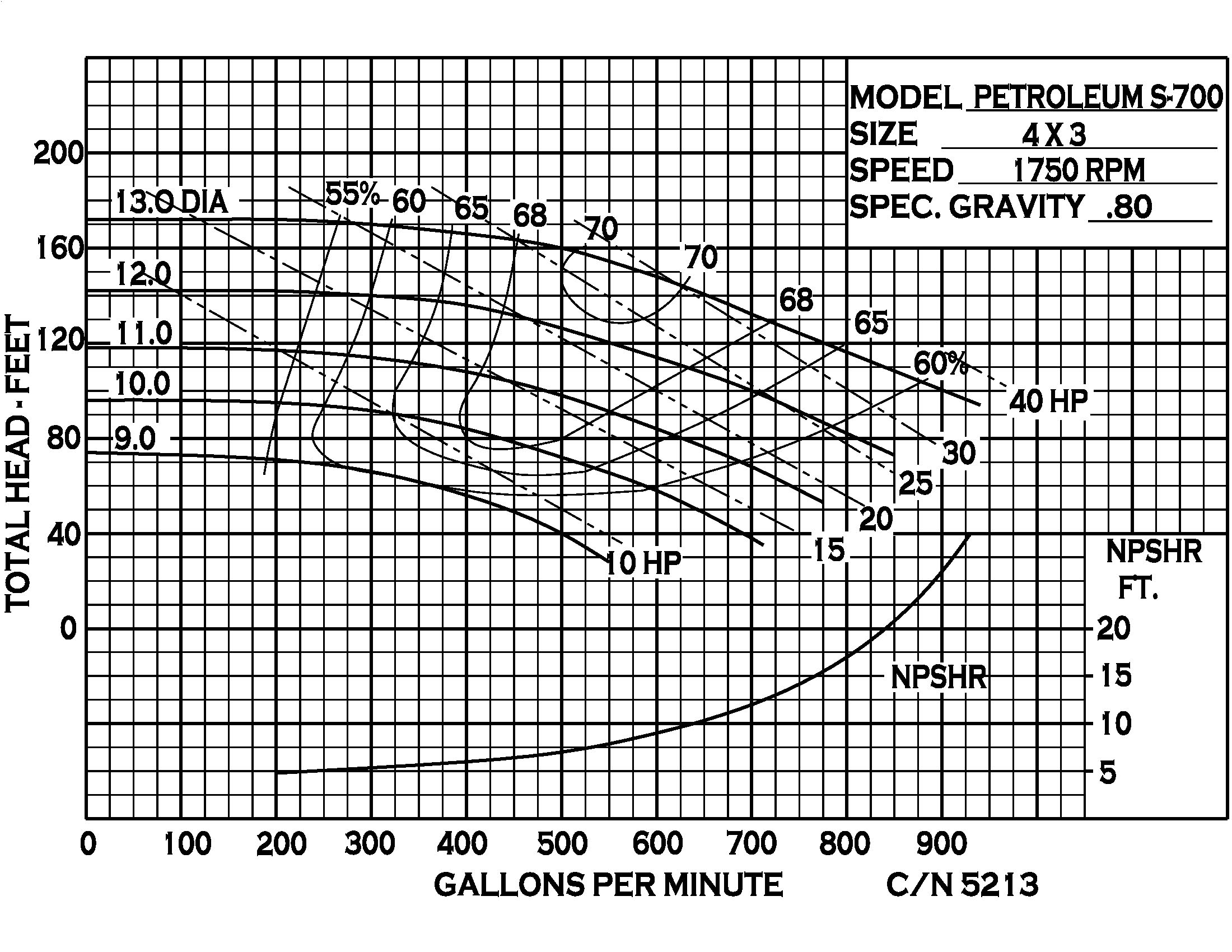

The Petroleum 700 series is purpose‑built for efficient movement of petroleum‑based fluids across agricultural, industrial, marine and OEM environments. This 4" x 3" end‑suction centrifugal pump integrates high‑strength materials and precision‑engineered hydraulics to deliver consistent flow rates up to 925 GPM (210 m³/h) and discharge heads reaching 170 ft (52 m).

Each model in the series – SE 700, SG 700, and SO 700 – is optimized for compatibility with specific fuel types. The SE 700 features an enclosed cast iron impeller engineered for ethanol blends; the SG 700 incorporates an enclosed aluminum impeller ideal for gasoline, kerosene, avgas and jet fuels; while the SO 700 utilizes a durable cast iron enclosed impeller suited for biodiesel, diesel and fuel oils.

The Petroleum 700 is designed for installation versatility. It can be configured as a close‑coupled pump with a 256JP frame electric motor, or installed using pedestal or PumPAK® assemblies. The pump housing can be rotated in 90‑degree increments, allowing flexible plumbing configurations without compromising performance.

A range of dedicated mechanical seal options ensures chemical compatibility and durability under varying fuel conditions. Explosion‑proof motor configurations are available for SE and SG models (Class 1 Group D), while the SO model features a TEFC motor arrangement. Together, these design features make the Petroleum 700 a rugged and adaptable solution for environments requiring safe, efficient and contamination‑free fluid transfer.
