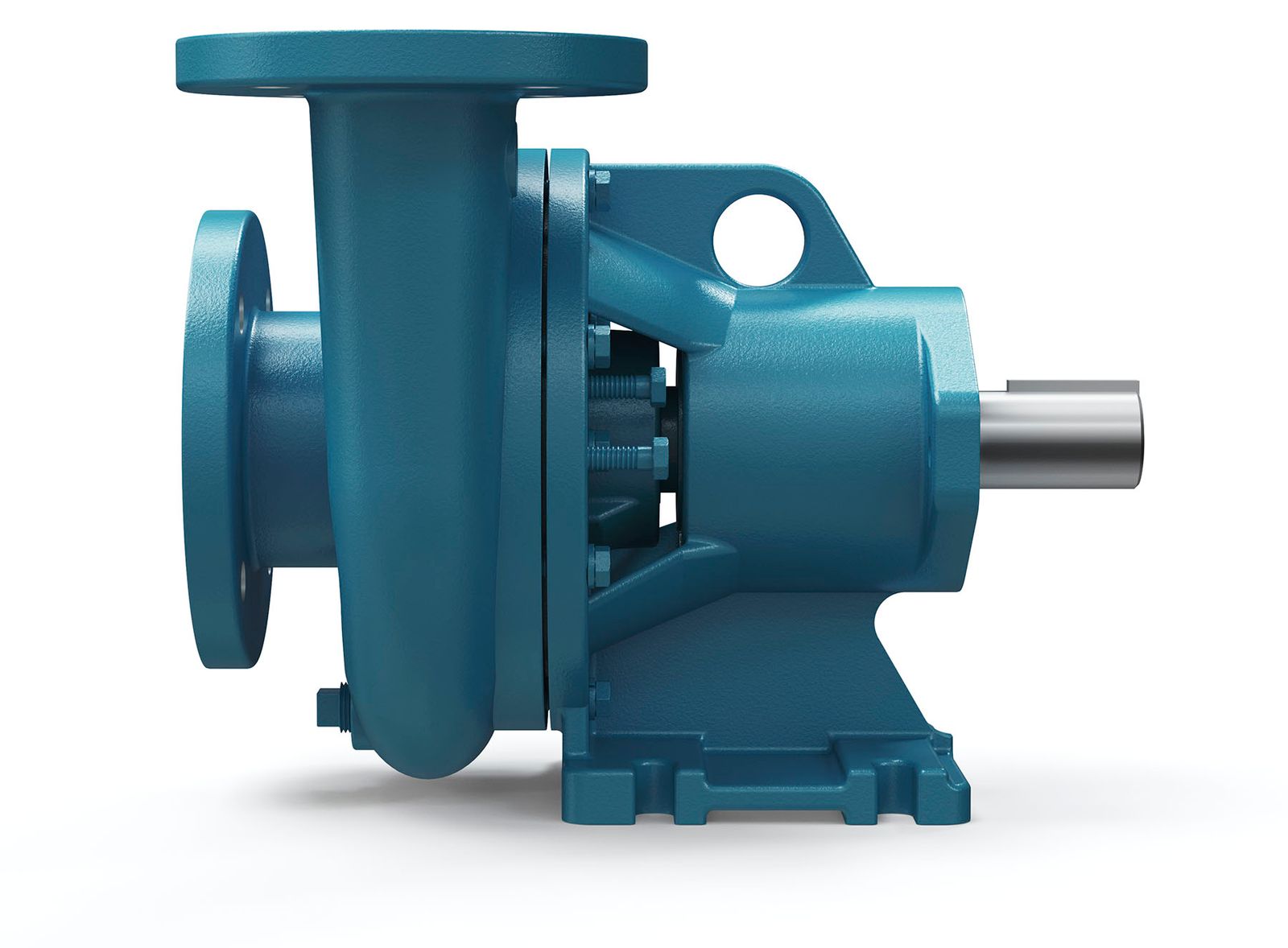

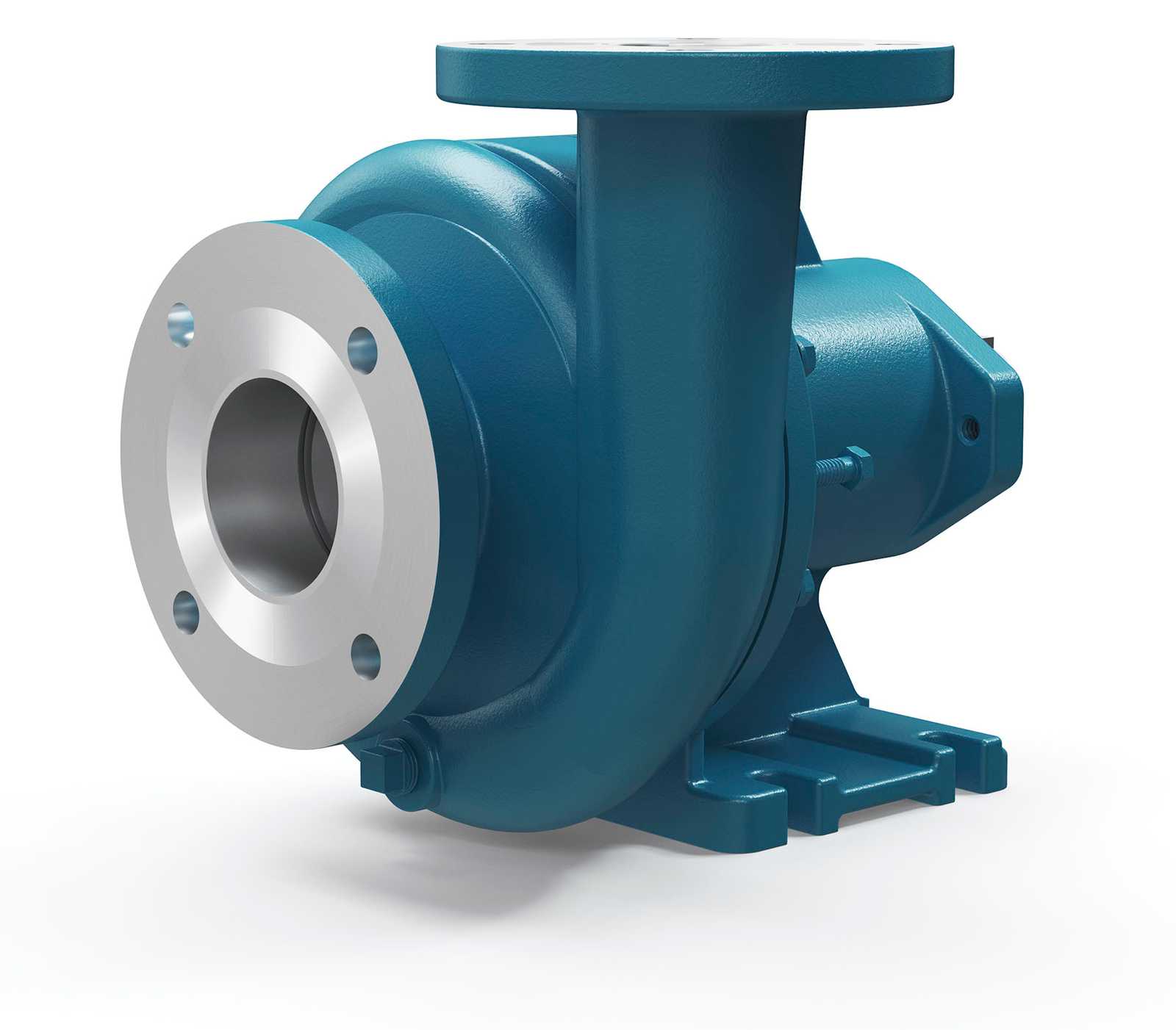

Series 300 | Industrial Liquid Centrifugal Pump

The Series 300 End Suction Centrifugal Pump is constructed with rugged cast iron pump components and corrosion‑resistant stainless steel fasteners, providing long-term durability in harsh operating environments. Its dynamically balanced 7" enclosed impeller ensures smooth operation with minimal vibration, optimizing hydraulic performance and extending bearing life.

The pump features a standard carbon/ceramic/Viton mechanical seal that is self‑adjusting and compatible with a wide range of fluids. This design enhances seal longevity while allowing reliable operation under fluctuating pressures and temperatures. For more specialized applications, various alternative seal material combinations are available.

Engineered for versatility, the Series 300 accommodates several drive options - including close‑coupled configurations (215JP, 254JP, 256JP), pedestal assemblies, hydraulic motor options (1.16 cu in / 19 cm³ and 1.58 cu in / 25.9 cm³), and a Pump-End‑Only loose parts kit-offering flexibility for OEM integration or system upgrades. The pump is also available as a fully tested "Wet End" PumPAK®, enabling rapid installation onto standard NEMA frame motors. Capable of delivering up to 520 GPM (118.1 m³/h) and heads reaching 190 ft (35 m), the Series 300 provides the flow and pressure performance required for demanding pumping operations. The design supports solid-handling up to 0.47" (11.9 mm), making it suitable for applications where fluid purity cannot be guaranteed.

Key Features

• Rugged Cast Iron Construction – Ensures long service life and resistance to wear in aggressive environments.
• Dynamically Balanced Enclosed Impeller – Improves hydraulic efficiency and reduces mechanical stress.
• Carbon/Ceramic/Viton Mechanical Seal – Standard seal suitable for broad fluid compatibility.
• Multiple Drive Options – Close‑coupled, pedestal, hydraulic motor, or loose pump‑end.
• High Flow and Head Performance – Up to 520 GPM (118.1 m3/h) and 190 ft (35 m) of head.
• Wet End PumPAK® Availability – Simplifies installation and reduces setup time.
• Handles Solids up to 0.47" (11.9 mm) – Suitable for mildly contaminated fluids.

Benefits

• Reduced Maintenance Needs thanks to optimized impeller balance and wear‑resistant materials.
• Enhanced System Versatility through multiple mounting and drive configurations.
• Reliable Fluid Transfer even in heavy‑duty industrial and agricultural environments.
• Quick Installation with PumPAK® wet-end options compatible with standard motors.
• Improved Operational Efficiency resulting in lower overall lifetime cost of ownership.
