Series 300 - Hydraulic | Industrial Liquid Centrifugal Pump

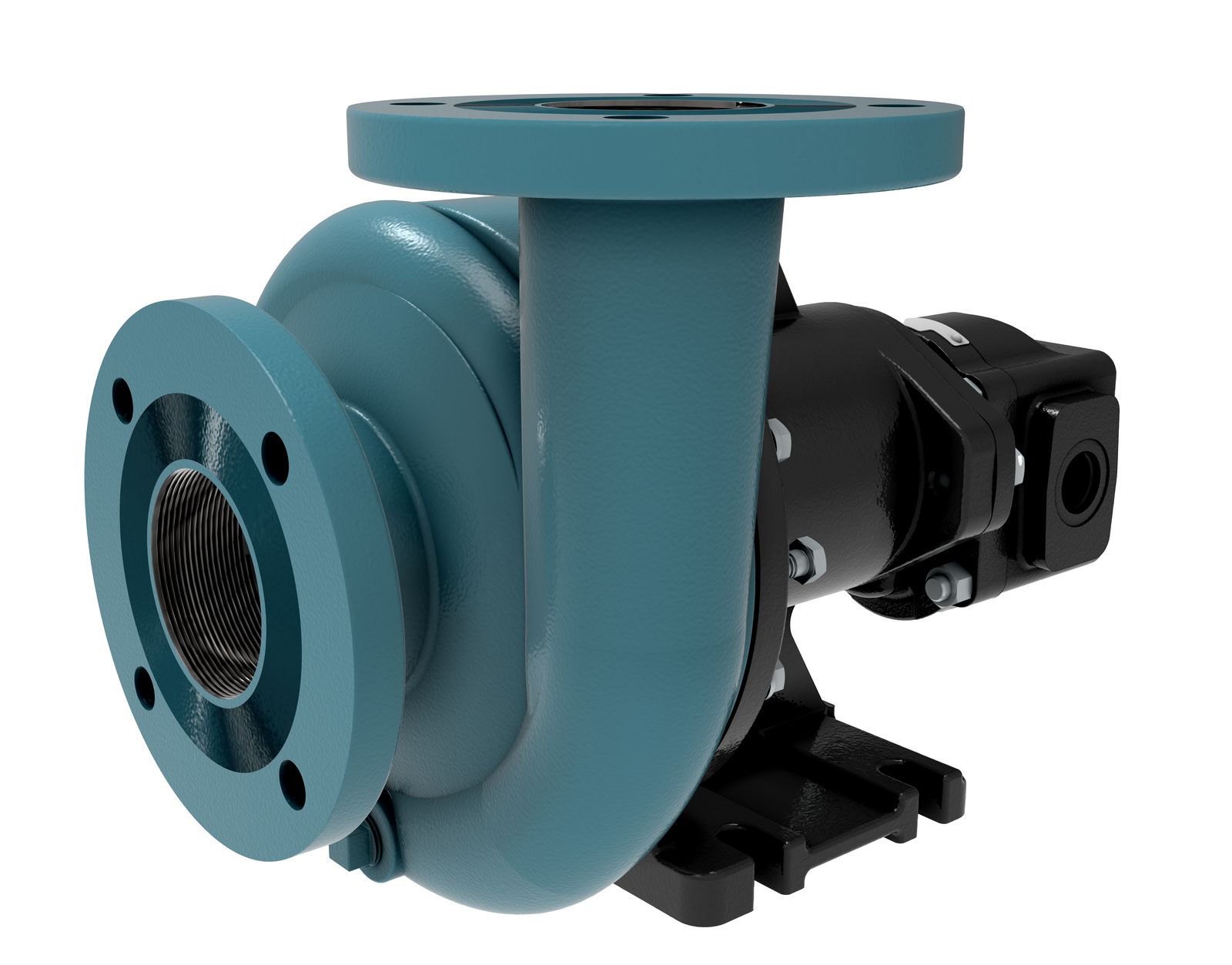

The Series 300 Hydraulic is a 3" x 2½" end‑suction centrifugal pump equipped with a rugged hydraulic drive system, enabling operation where traditional electric or engine‑driven units may not be suitable. Designed for flows up to 520 GPM (118.1 m³/h) and heads reaching 220 ft (67 m), this pump excels in high‑demand fluid transfer processes requiring both volume and efficiency.

The pump’s heavy‑duty cast iron construction ensures excellent durability in abrasive or contaminated environments, while stainless‑steel fasteners provide enhanced corrosion resistance for long‑term structural integrity. A dynamically balanced 7" enclosed cast iron impeller minimizes vibration, decreases bearing load, and improves overall hydraulic efficiency.

For sealing performance, the Series 300 uses a standard carbon/ceramic/Viton mechanical seal, offering chemical compatibility across a broad range of liquid types. This self‑adjusting seal design ensures consistent leak protection and reduced maintenance requirements.

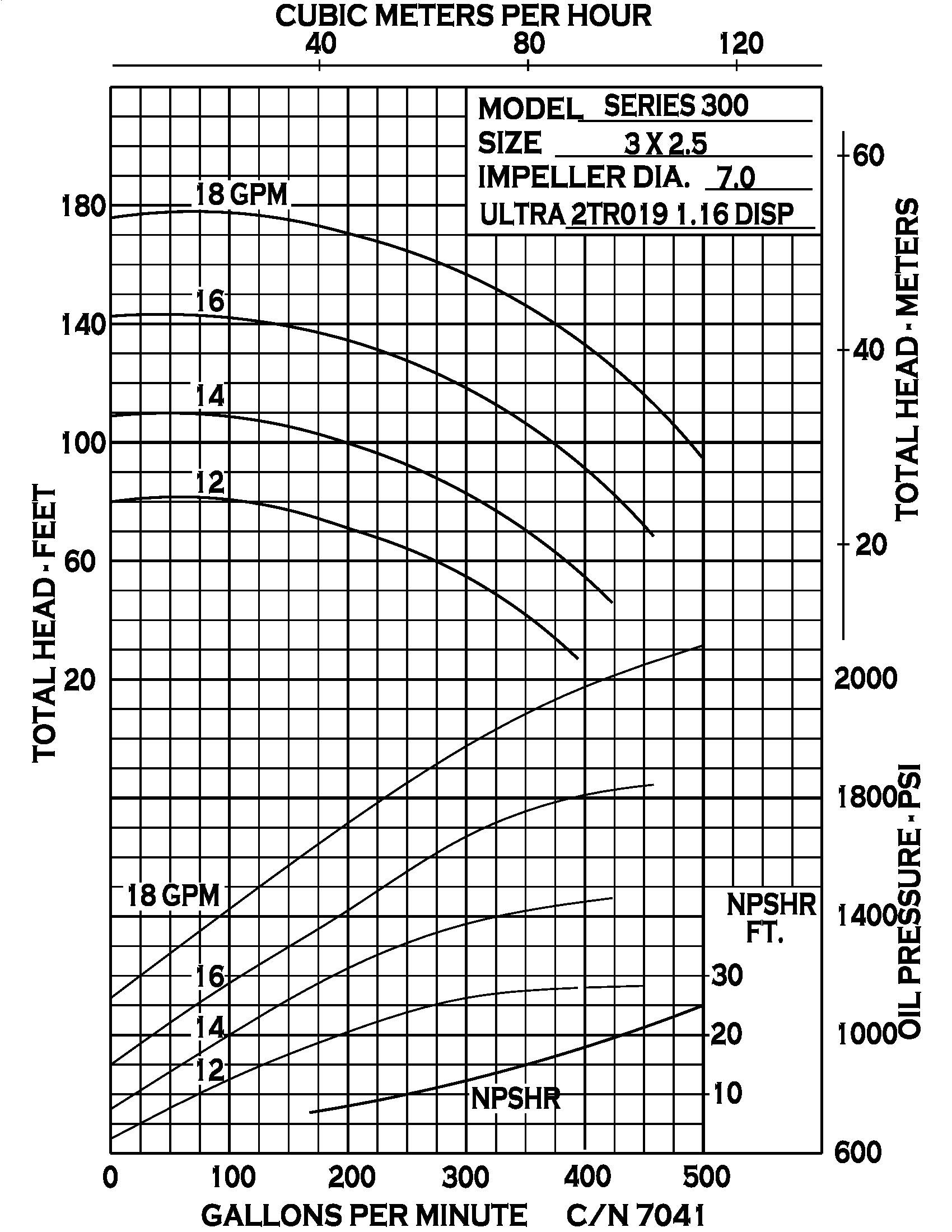

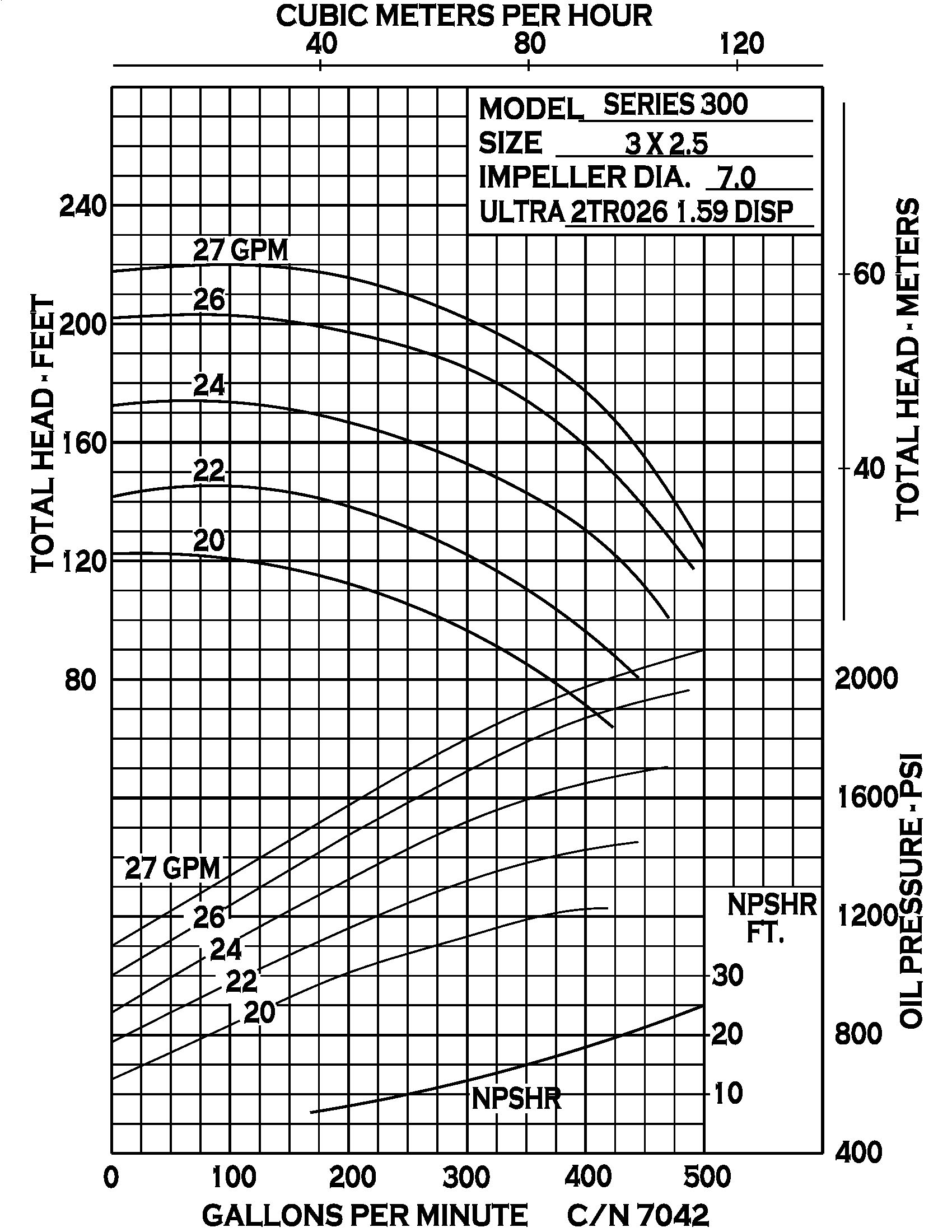

The hydraulic drive system accommodates two gerotor motor displacement options—1.16 in³ (19 cm³) or 1.59 in³ (26 cm³)—allowing users to match flow characteristics to application‑specific performance needs. With a hydraulic fluid flow of up to 27 GPM (6.1 m³/h) and operating pressures reaching 2200 PSI (151.6 bar), the pump offers flexibility and power suitable for mobile machinery, equipment retrofits, and integrated system designs.

Its ability to handle solids up to 0.47" (11.9 mm) further enhances versatility in environments with suspended particulates. Optional configurations, such as a female spline shaft (without hydraulic motor), provide additional customization possibilities.

Overall, the Series 300 Hydraulic combines robust mechanical engineering with fluid‑dynamic efficiency, making it a reliable solution for professionals seeking performance, longevity, and adaptability.

Key Features

• 3" x 2½" 150# ANSI suction/discharge flanges for easy system integration
• Cast iron pump housing for durability and stability
• 7" dynamically balanced enclosed impeller for optimized efficiency
• Standard carbon/ceramic/Viton mechanical seal
• Gerotor hydraulic motor options (1.16 or 1.59 in³) / (19 cm³, 26cm³)
• Handles solids up to 0.47" (11.9 mm)
• Hydraulic operation up to 2200 PSI (151.6 bar)
• Maximum fluid flow up to 520 GPM (118.1 m³/h)
• Optional female‑spline shaft configuration

Benefits

• Reliable performance in demanding environments
  Rugged materials and corrosion‑resistant components extend usability in tough operating conditions.
• High versatility across industries
  Suitable for agricultural systems, industrial equipment, marine applications, and OEM platforms.
• Low maintenance requirements
  Self‑adjusting mechanical seal and balanced impeller reduce wear and service intervals.
• Flexible hydraulic power options
  Multiple motor displacement selections allow precise control of pump performance.
• Efficient fluid handling
  High flow and head capabilities support large‑scale transfer, circulation, and process applications.
• Improved operational longevity
  Robust metal construction and stainless‑steel fasteners ensure long‑term durability.
