Series 60 - Hydraulic | Industrial Liquid Centrifugal Pump

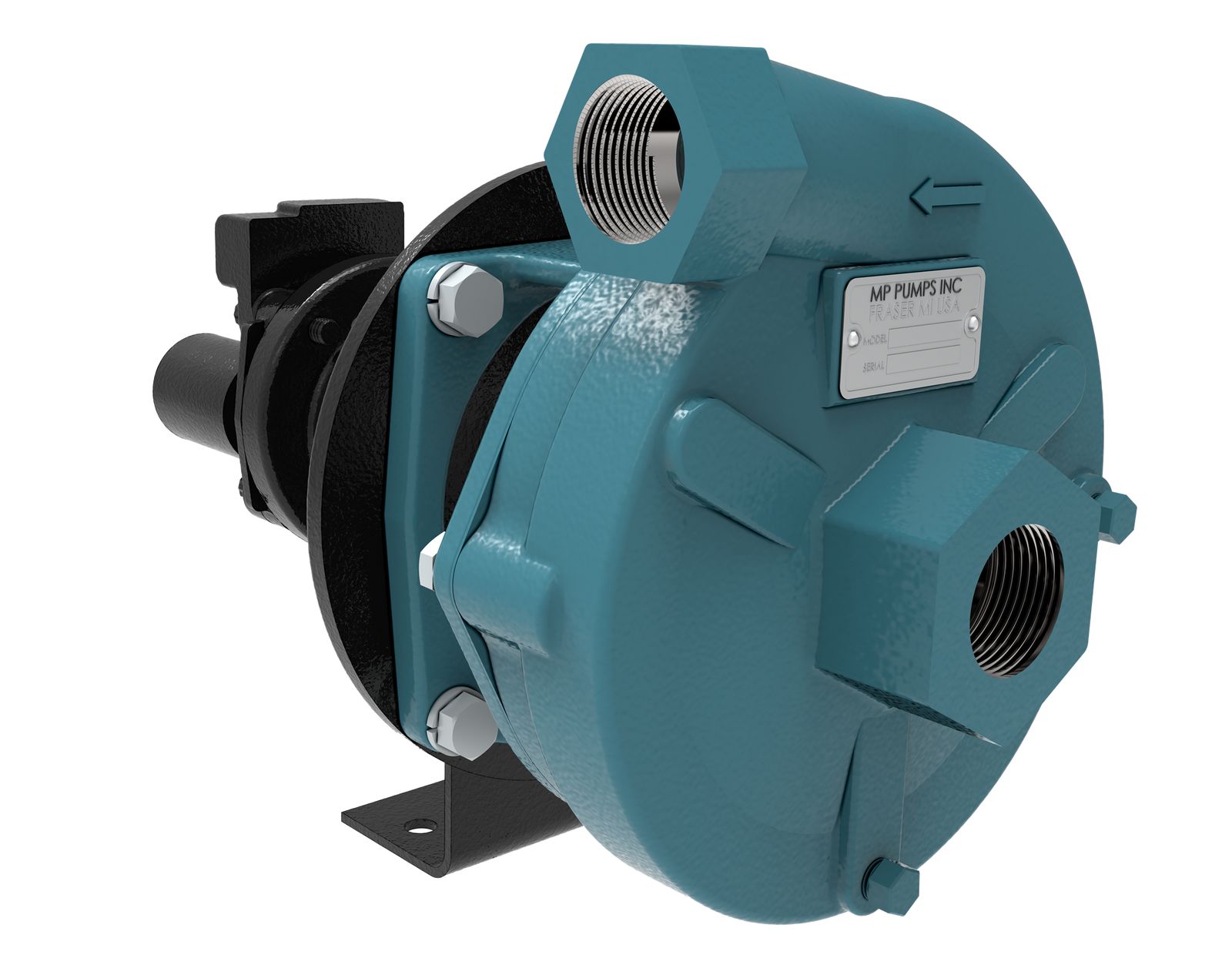

The Series 60 Hydraulic is engineered as a robust, high‑efficiency end‑suction centrifugal pump designed to operate seamlessly within hydraulic drive systems. Its construction is centered around a heavy‑duty cast iron or ductile iron pump casing, providing the structural strength needed for applications with elevated pressures, fluctuating loads, and continuous‑duty cycles. This rugged housing not only ensures mechanical integrity but also supports reliable performance when handling a broad range of fluids common to industrial, agricultural, and marine environments.

At the core of the pump’s hydraulic performance is a dynamically balanced enclosed impeller with a diameter of 5.47 inches (138.9 mm). The enclosed impeller design improves hydraulic efficiency and reduces internal recirculation, contributing to steady flow rates and a smoother pumping action. Dynamic balancing minimizes vibration, which translates to reduced bearing stress, quieter operation, and longer service intervals. The use of cast iron impeller material makes the component resistant to wear and abrasion, expanding operating lifetime in demanding environments.

The Series 60 is powered by a gerotor‑style hydraulic motor, selected for its compact size, smooth torque delivery, and high reliability. It is available in four displacement options—0.22, 0.37, 0.45, and 0.58 cubic inches (3.61, 6.06, 7.37, 9.50 cm3) —allowing engineers to tailor the pump’s rotational speed, flow rate, and pressure characteristics to the exact requirements of the hydraulic system. This modularity ensures compatibility with a wide range of mobile machinery, power units, and fixed hydraulic circuits. The system supports hydraulic oil flows up to 16 GPM (3.6 m3/h) and hydraulic pressures as high as 2500 PSI (172 bar), enabling optimal performance in high‑demand and pressure‑intensive applications.

To ensure longevity and leakage protection, the pump is equipped with a standard carbon/ceramic/Viton mechanical seal. This combination offers strong resistance to chemical attack, high temperatures, and abrasive conditions. The seal’s self‑adjusting nature maintains constant contact pressure, reducing the risk of premature wear and enabling reliable long‑term sealing even under system vibration or thermal expansion. Stainless steel fasteners used throughout the assembly add corrosion resistance, making the unit suitable for humid environments, salt‑laden marine air, and chemical processing situations.

The hydraulic‑driven design eliminates the need for electric motors or engine‑driven belts, reducing mechanical complexity and improving reliability, particularly in mobile or remote applications. The pump can achieve flow rates of up to 100 GPM (22.7 m3/h) and heads reaching 400 feet (122 m), making it capable of handling high‑lift or high‑pressure fluid transfer tasks. It also accommodates solids up to 0.11 inches (2.8 mm) in diameter, allowing the handling of slightly contaminated process fluids without operational interruptions.

Optional configurations include hydraulic motors equipped with integrated flow‑control features, enabling operators to better regulate pump output, reduce energy consumption, and enhance operational safety. These options make the Series 60 adaptable to a wide variety of system architectures, whether used as a primary pump, a transfer pump, or part of an integrated OEM module.

Overall, the Series 60 Hydraulic pump is engineered for efficiency, versatility, and durability, offering reliable performance across a wide operational spectrum while maintaining ease of integration into existing or newly designed hydraulic systems.
