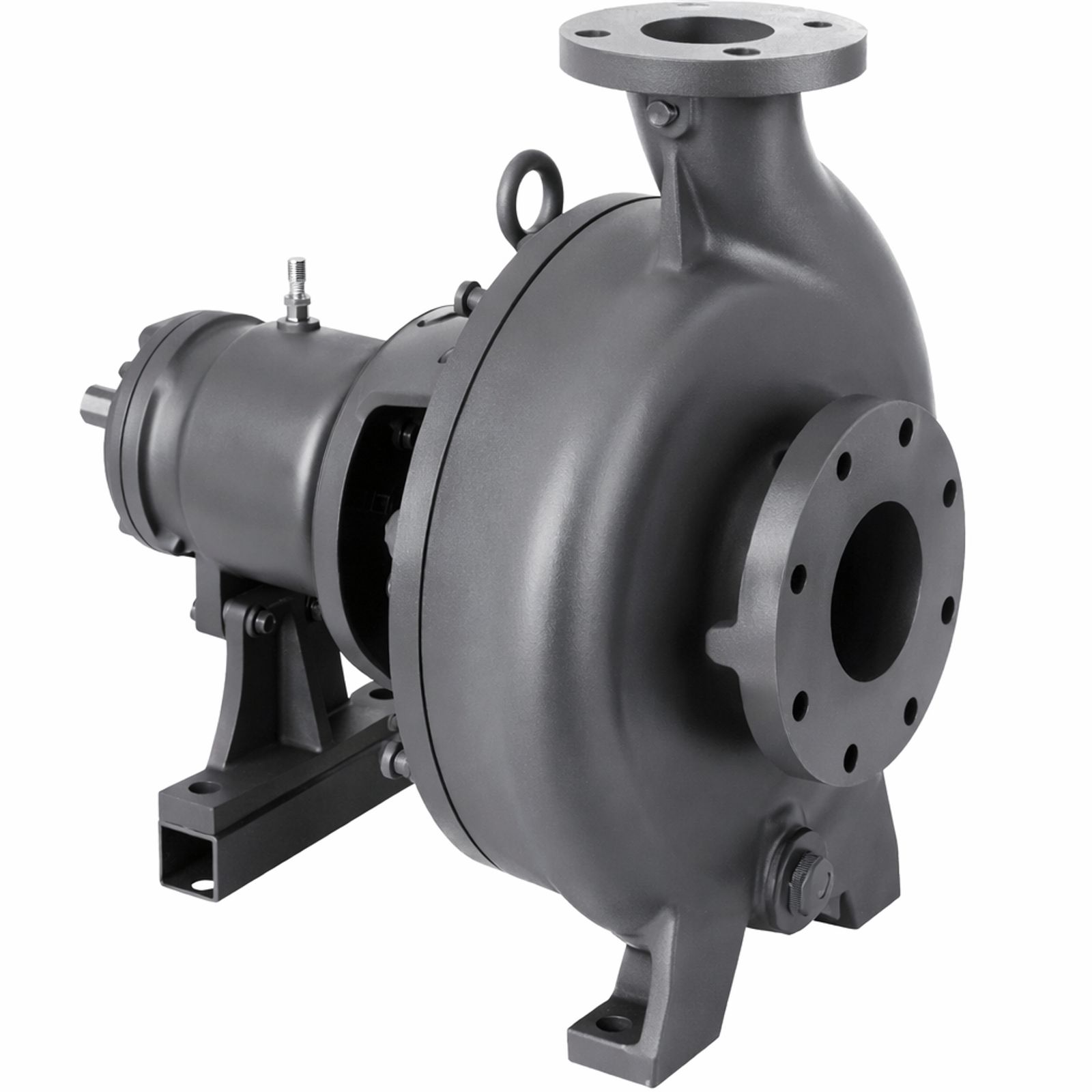

Series 700 | Industrial Liquid Centrifugal Pump

The Series 700 features a heavy‑duty ductile iron casing secured with stainless steel fasteners, ensuring structural integrity and durability even in demanding operating environments. At its core is a dynamically balanced 13" (330.2 mm) enclosed impeller, designed to minimize vibration, reduce bearing loads, and maintain high hydraulic efficiency.

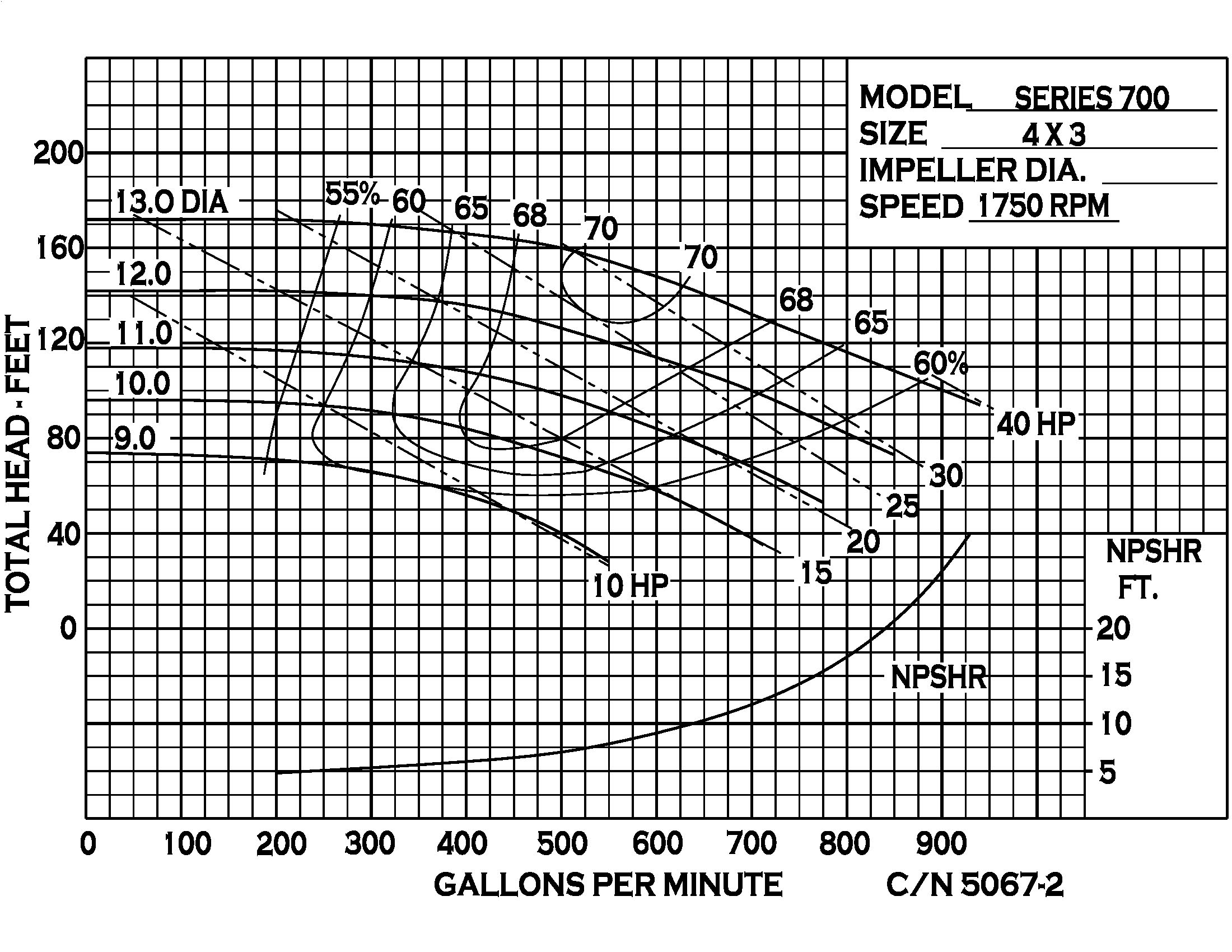

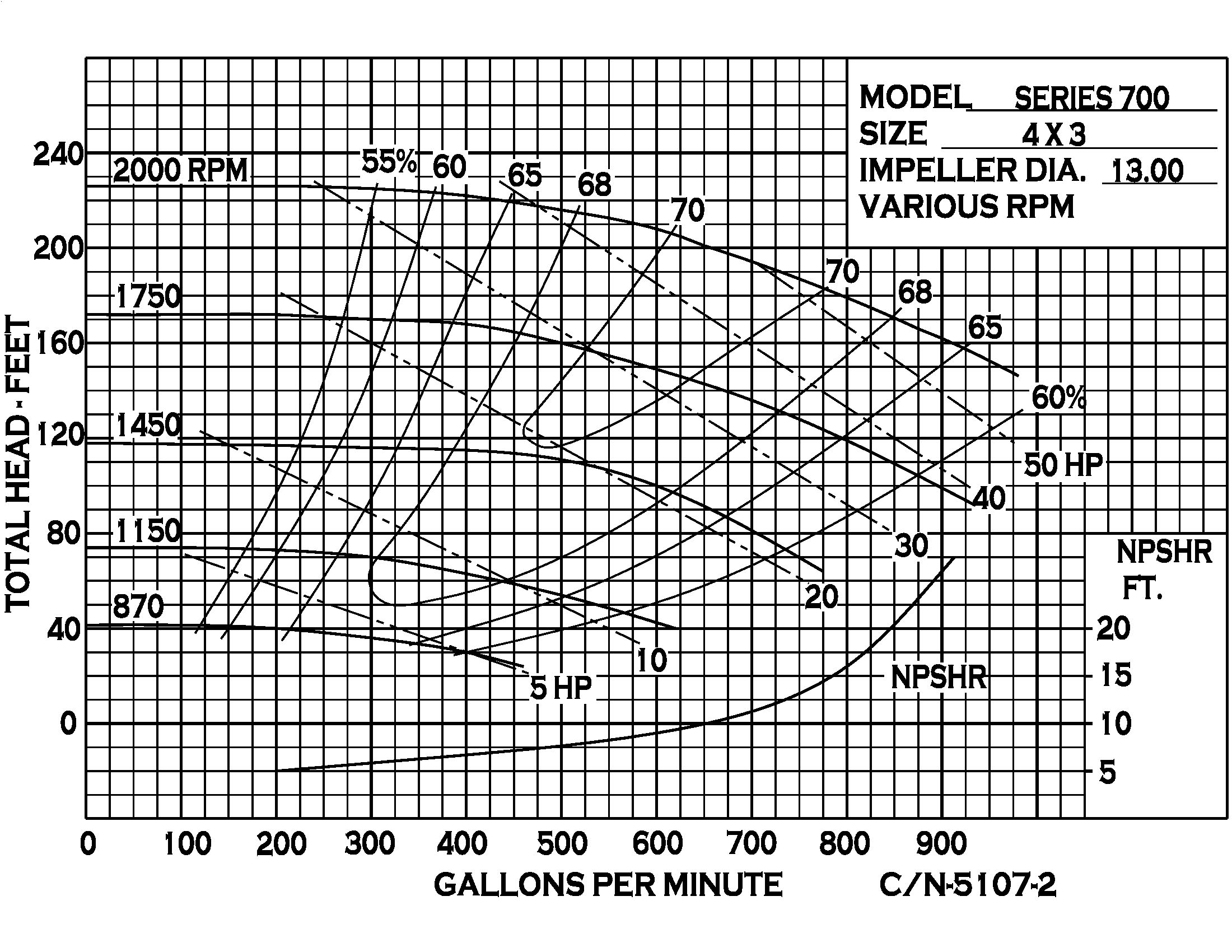

This pump is capable of delivering up to 900 GPM (204.4 m³/h) and achieving heads up to 170 ft (52 m), making it suitable for high-volume fluid transfer, booster applications, and industrial circulation systems. Its standard carbon/ceramic/Viton mechanical seal is self-adjusting and corrosion-resistant, offering reliable protection against leakage across a wide range of fluids. Optional seal material combinations are available for more specialized applications.

To accommodate various systems, the Series 700 can be supplied either with or without a motor, and multiple configurations are available, including close-coupled (254JP and 256JP), pedestal-mounted, or as a loose pump-end kit for OEM integrations. Various impeller diameters can also be selected to precisely match the desired operating point. The pump's 4" x 3" 150# ANSI flanged suction and discharge ports ensure easy system integration, while a 0.65" (16.5 mm) maximum solids-handling capability supports use with light particulates often present in agricultural and industrial environments.

Rated up to 40 HP (29.4 kW), the Series 700 provides an efficient and adaptable platform for new installations or system upgrades requiring reliable, high-throughput performance.

• High-Capacity Performance – Up to 900 GPM (204.4 m3/h) and 170 ft (52 m) of head for demanding continuous‑flow applications.
• Durable Construction – Ductile iron casing and stainless steel fasteners ensure long-lasting operation in harsh environments.
• Efficient Operation – Dynamically balanced enclosed impeller reduces wear and vibration for smoother performance.
• Reliable Sealing – Standard carbon/ceramic/Viton mechanical seal provides high chemical resistance and extended life.
• Flexible Configurations – Available close‑coupled, pedestal-mounted, or as a pump-end kit for system integration or retrofit.
• Solids Handling Capability – Passes solids up to 0.65" (16.5 mm) for broader application suitability.
• Wide Application Range – Ideal for agricultural, commercial, industrial, and OEM systems requiring dependable flow.
