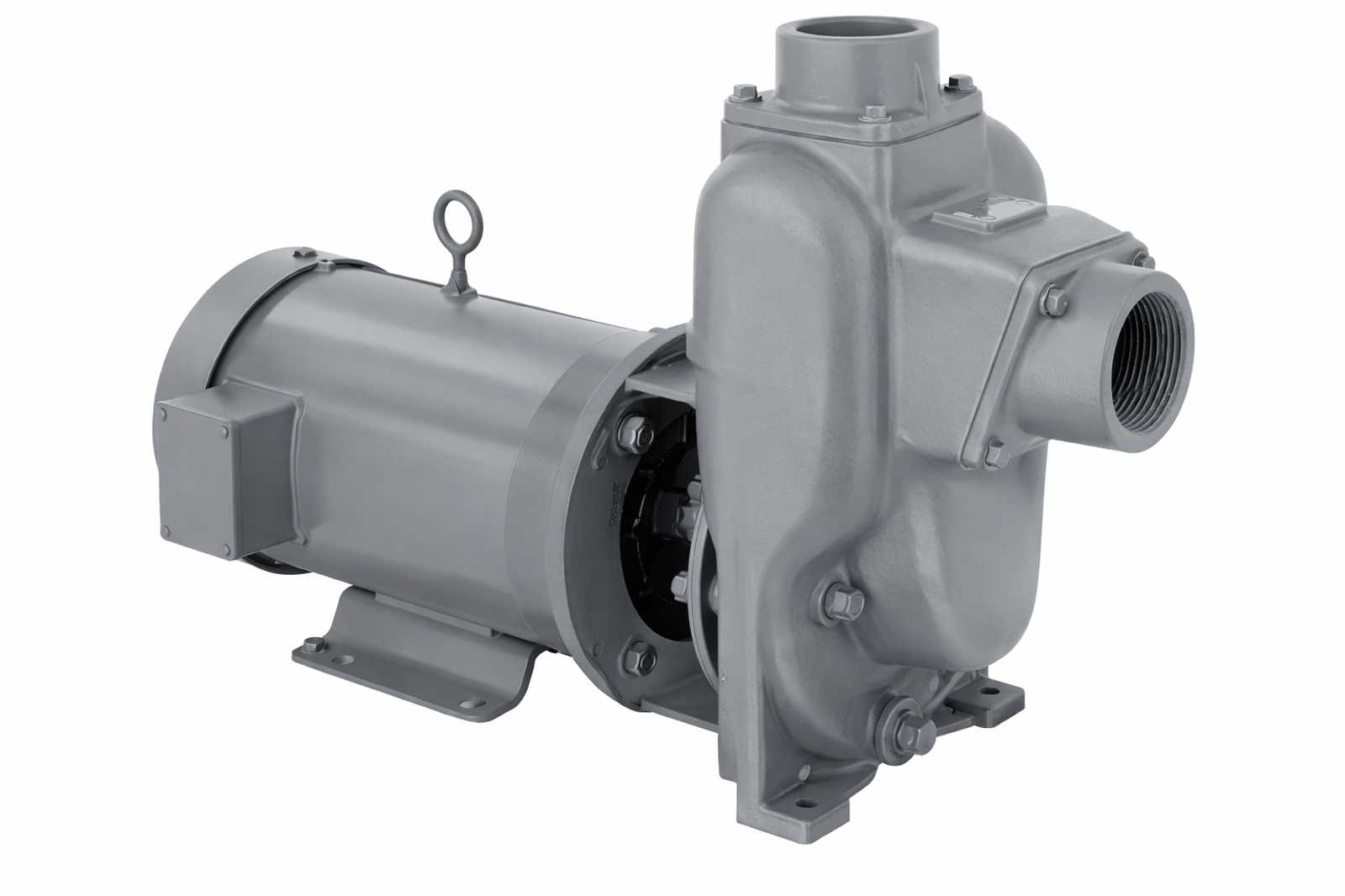

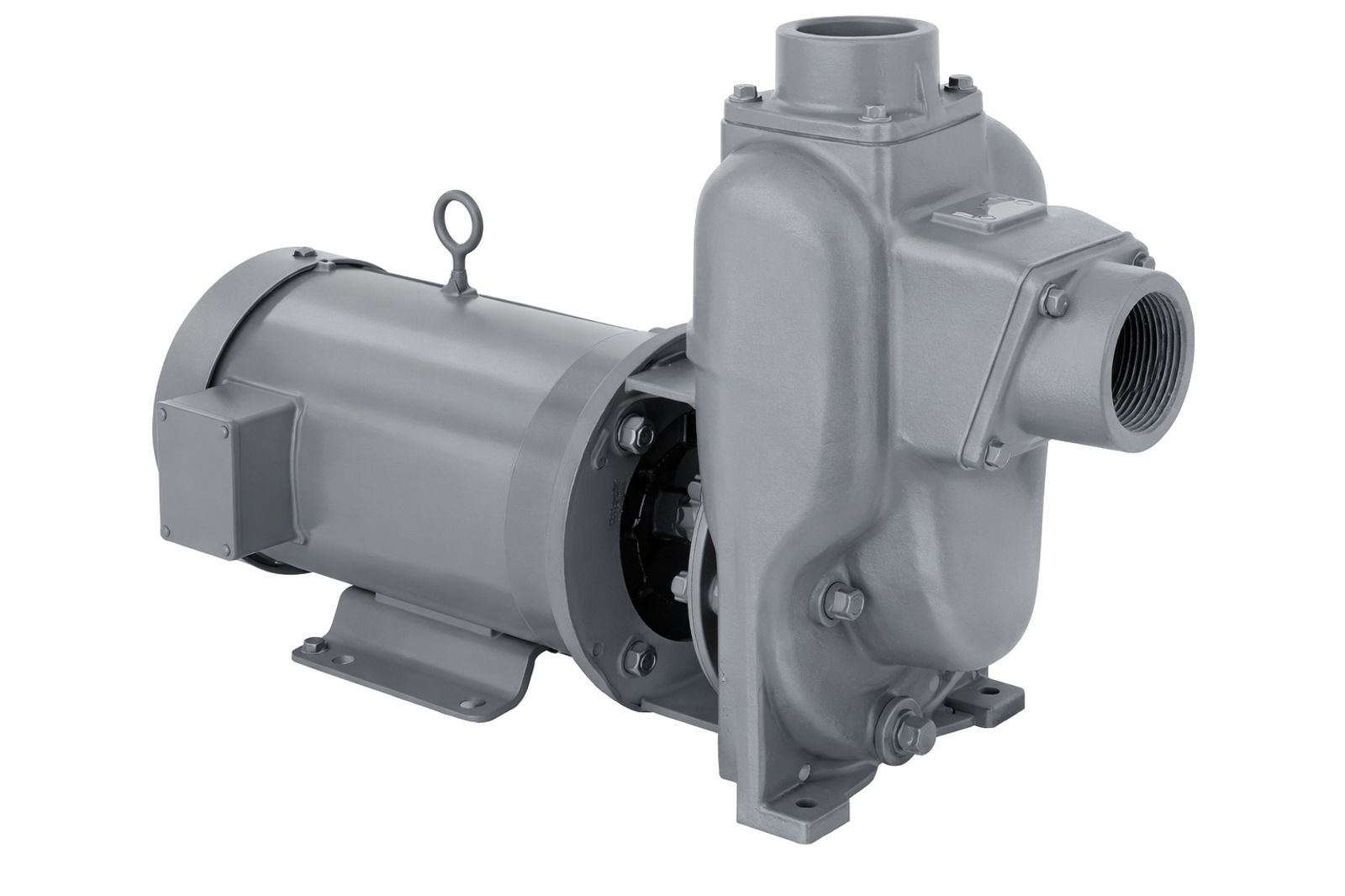

PETROLEUM 10 | P Series | Self-Priming Centrifugal Pump (2" x 2")

The Petroleum 10 self‑priming pump incorporates a robust hydraulic design paired with durable construction materials to ensure consistent performance and extended service life. Its ability to create sufficient vacuum for efficient liquid lift makes it suitable for installations requiring above‑ground mounting or long suction lines.

The unit is available in three specialized variants – PE, PG, and PO – each engineered to handle specific fuel types including ethanol blends, gasoline, kerosene, jet fuel, biodiesel, and fuel oils. These models utilize semi‑open, dynamically balanced impellers made of cast iron, with optional aluminum or 316 stainless steel materials for operations requiring superior chemical resistance.

The Petroleum 10 can be configured with multiple drive options including close‑coupled electric motors (182TC and 184TC frames), gasoline engines, hydraulic motors, or pedestal mounts for belt‑driven systems. The PumPAK® version provides a fully assembled, tested pump end ready for easy coupling with various drivers.

Key durability-enhancing elements include a stainless steel drive sleeve, stainless steel fasteners, and a renewable wear plate that extends component life while simplifying field maintenance. Seal assemblies differ per model to ensure compatibility with the intended media, using combinations of carbon, silicon carbide, Ni‑Resist, and Viton elastomers.

Built for versatility, the Petroleum 10 is also available with explosion‑proof motor mounting options for hazardous Class 1, Group D environments (PE and PG models). Selected engine‑mount configurations meet 46 CFR compliance requirements, supporting use in marine and regulated fuel‑handling applications.

Features

• Gas engine options for diesel fuel transfer
• Non-spark clamp (PG models)
• Renewable wear plate for extended operational life
• Stainless steel drive sleeve
• Stainless steel fasteners
• Self‑priming capability with up to 25 ft (8 m) suction lift

Benefits

• High versatility: Multiple model options allow precise compatibility with a wide range of fuels.
• Easy integration: Numerous drive configurations simplify installation across diverse operational setups.
• Enhanced durability: Corrosion‑resistant components and renewable wear plates reduce maintenance costs.
• Reliable performance: Strong suction lift and balanced impeller ensure stable flow and pressure output.
• Hazard‑area suitability: Explosion‑proof motor options support safe operation in regulated environments.
• Engineered for longevity: Quality sealing materials matched to specific media ensure long-term reliability.
