The MP Pumps 2CT is a rugged, self-priming centrifugal trash pump designed to deliver reliable performance in the most challenging environments. Its heavy-duty cast iron casing ensures exceptional durability and resistance to wear, making it suitable for continuous operation in industrial and commercial settings. The pump’s 304 stainless steel drive sleeve provides superior protection against corrosion, extending the life of critical components even when exposed to harsh fluids.

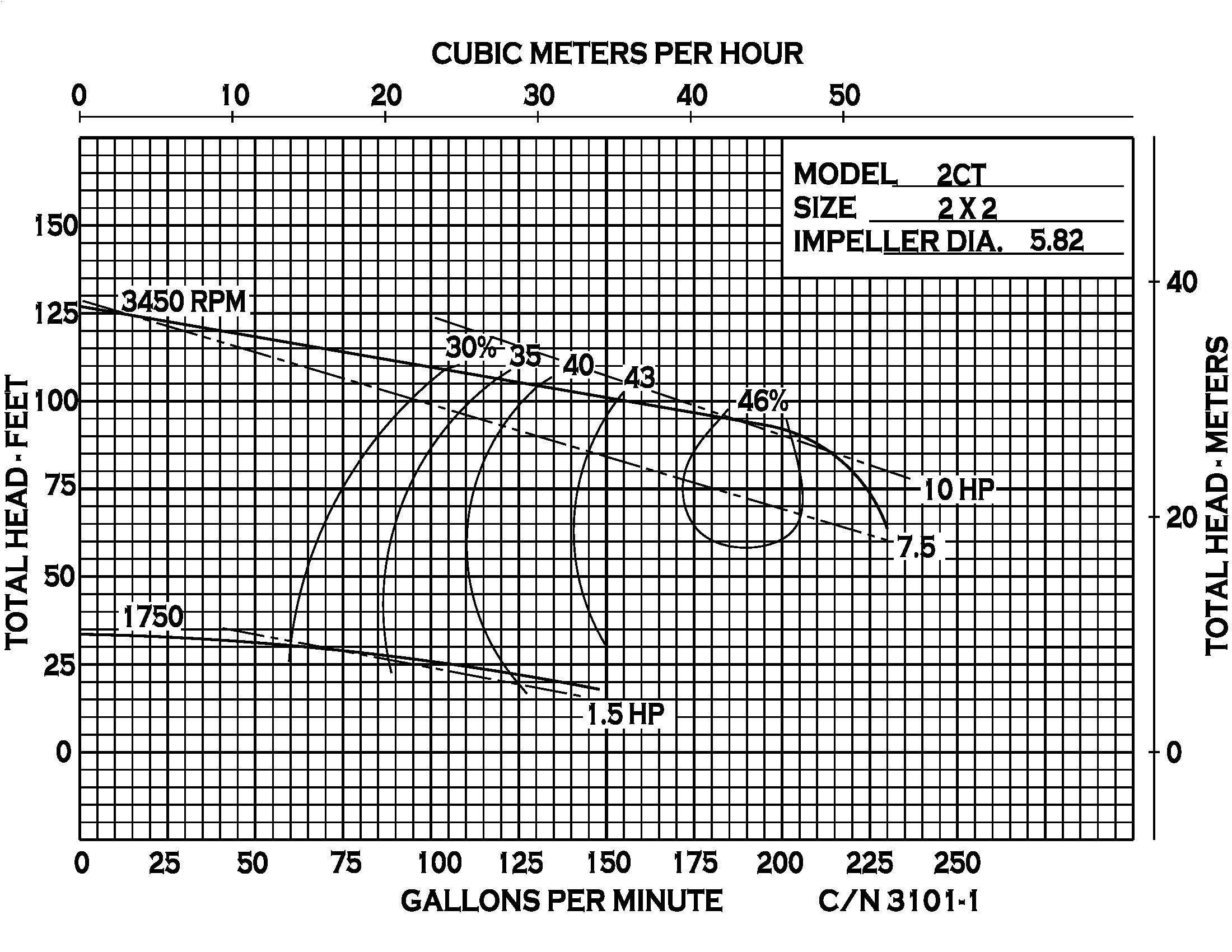

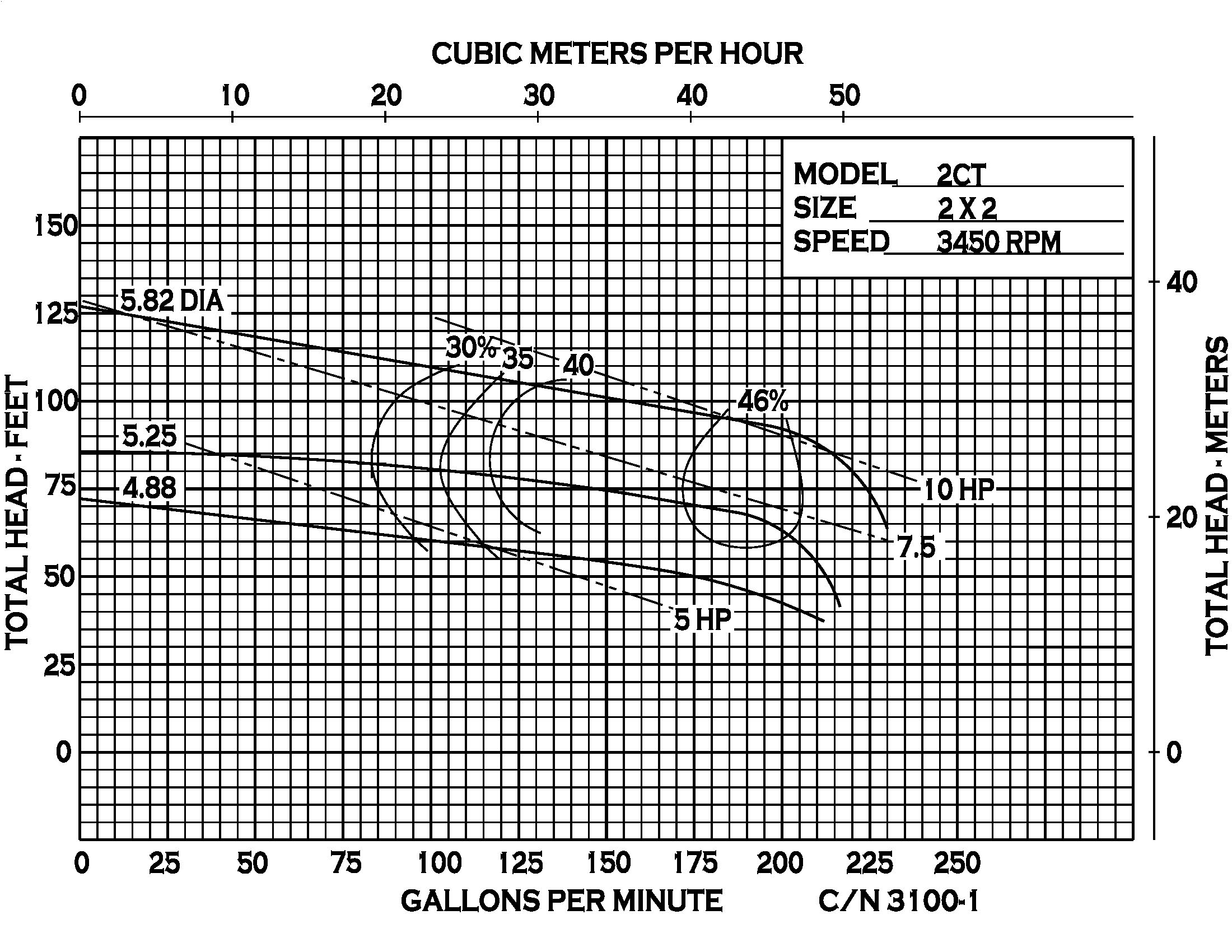

The 2CT features a ductile iron impeller with a diameter of 5.82" (147.83 mm), engineered for high efficiency and strength under demanding conditions. This impeller design enables the pump to achieve flow rates of up to 225 GPM (51.1 m³/h) and a maximum head of 125 feet (38 meters), ensuring consistent performance across a wide range of applications.
Maintenance is simplified through the back pull-out design, allowing technicians to service the pump without disturbing the piping system. The front cleanout port provides quick access for removing debris, reducing downtime and improving operational efficiency. The pump is capable of handling solids up to 1.5" (38.1 mm) in diameter, making it ideal for applications involving contaminated liquids or slurry-like materials.
The 2CT offers multiple drive configurations, including close-coupled options for NEMA 145TC and 184C frames, pedestal-mounted setups, and the PumPAK® configuration for installations requiring custom motor solutions. A standard carbon/ceramic/Viton mechanical seal ensures reliable sealing and resistance to chemical attack, while the stainless steel drive sleeve adds an extra layer of durability.
This combination of robust construction, versatile design, and ease of maintenance makes the MP Pumps 2CT a preferred choice for industries such as manufacturing, construction, and OEM systems where uptime and reliability are critical.
Features and Benefits
- Heavy-duty construction – Cast iron casing and stainless steel sleeve for long service life.
- Easy maintenance – Back pull-out design and front cleanout port.
- High performance – Flow rates up to 225 GPM (51.1 m³/h) and head up to 125 ft (38 m).
- Solids handling – Passes solids up to 1.5" (38.1 mm).
- Versatile configurations – Multiple drive options for diverse applications.
