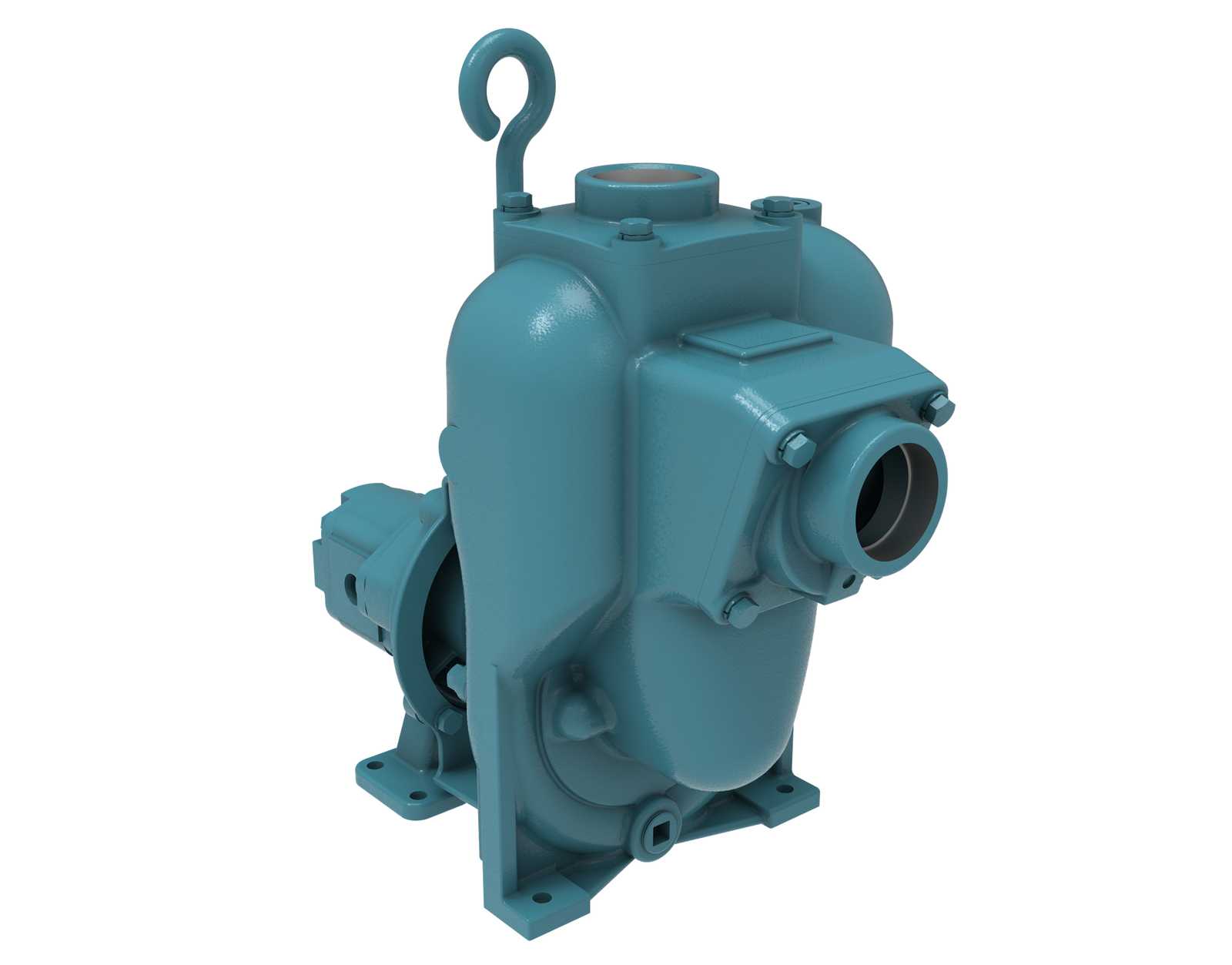

Product Overview
The FLOMAX® 10 Hydraulic pump is a 2" × 2" self‑priming centrifugal unit equipped with a high‑performance hydraulic gear motor rated at 0.73 cu in (12.0 cm³) displacement. It operates efficiently across a hydraulic flow range of 8–15 GPM (1.8–3.4 m³/h), with system pressures from 500–1700 PSI (34–117 bar), supporting demanding hydraulic-drive installations.
Its design enables the creation of sufficient vacuum to lift liquids from depths of up to 25 ft (7.6 m), making it ideal for applications requiring rapid and reliable priming. Once primed, the integrated flapper valve holds liquid in the suction line to prevent loss of prime, ensuring continuous, interruption-free pumping.
The pump is available in bronze or cast iron construction, offering corrosion-resistant performance across a broad range of fluids. A dynamically balanced 6.0" semi-open impeller enhances hydraulic efficiency and reduces component wear, while the replaceable wear plate extends pump longevity and simplifies maintenance. Heavy-duty stainless steel fasteners and a stainless steel drive sleeve provide superior structural strength and resistance to harsh environments.

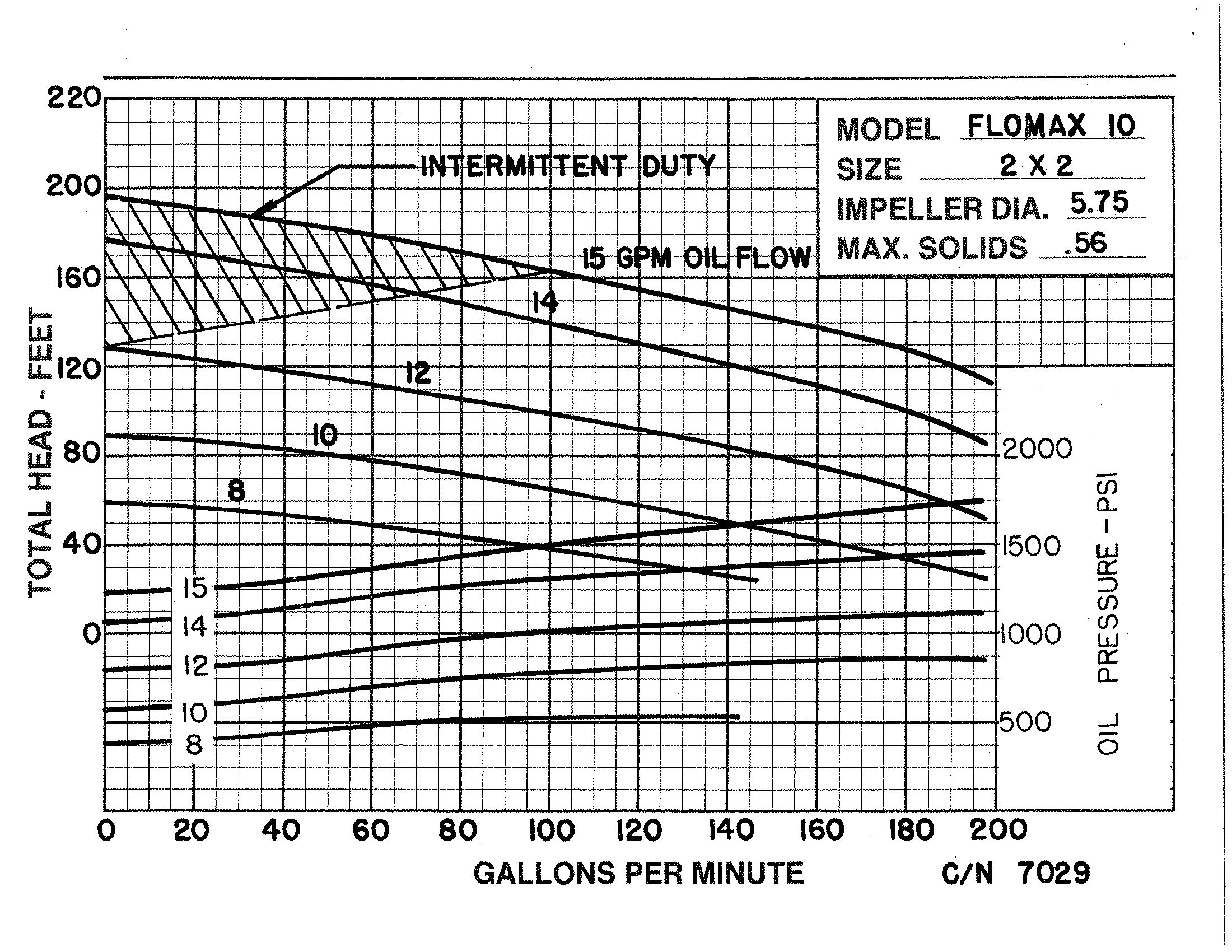

Capable of delivering flow rates up to 200 GPM (45.4 m³/h) and heads up to 195 ft (59 m), the FLOMAX® 10 is a versatile solution for fluid transfer, washdown systems, marine bilge pumping, fertilizer and pesticide application, bulk liquid movement, and other challenging operational tasks. Optional seal combinations, including double grease‑lubricated configurations and stainless steel impellers, allow customization for abrasive or corrosive media.
