Product Overview

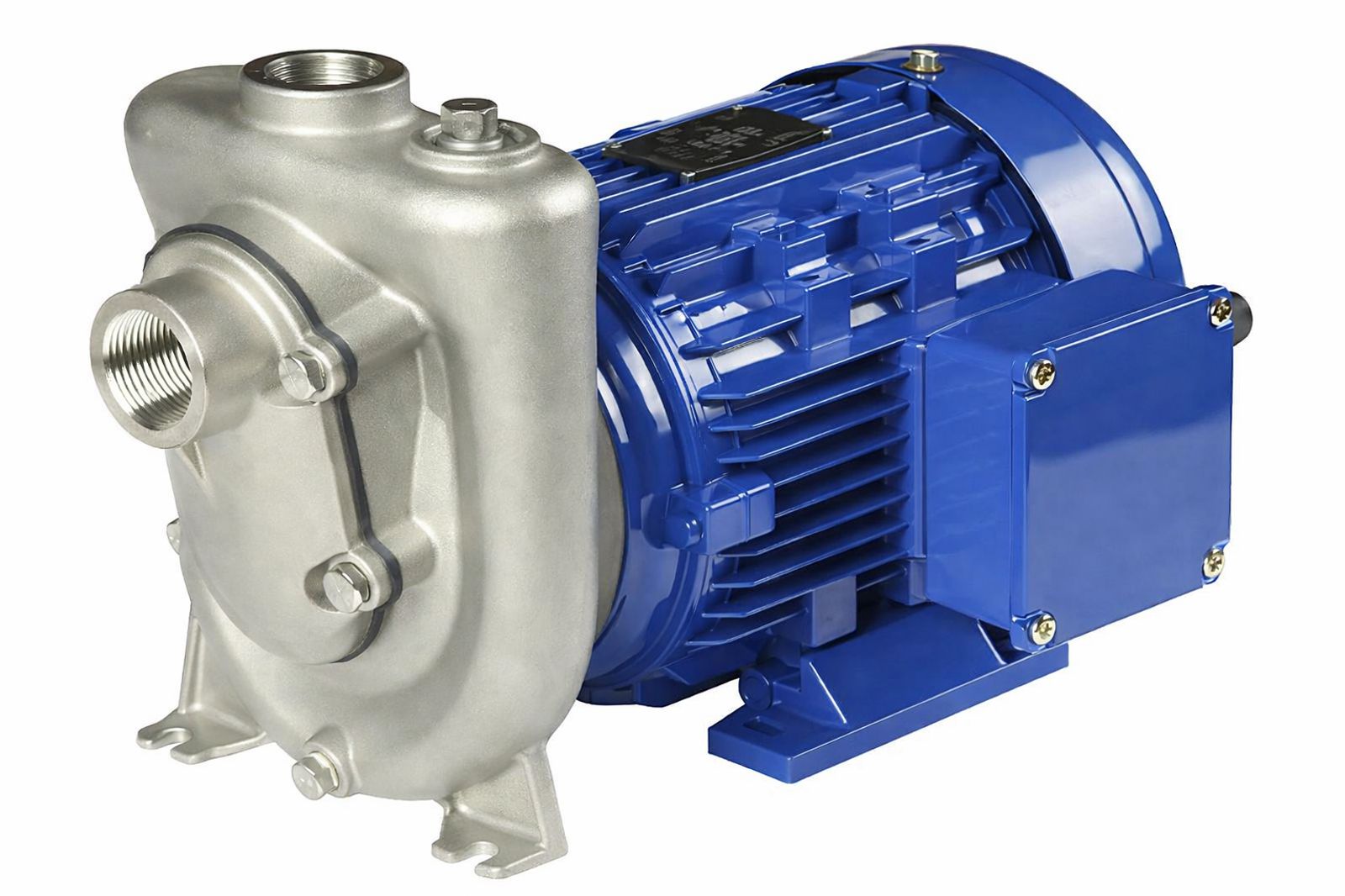

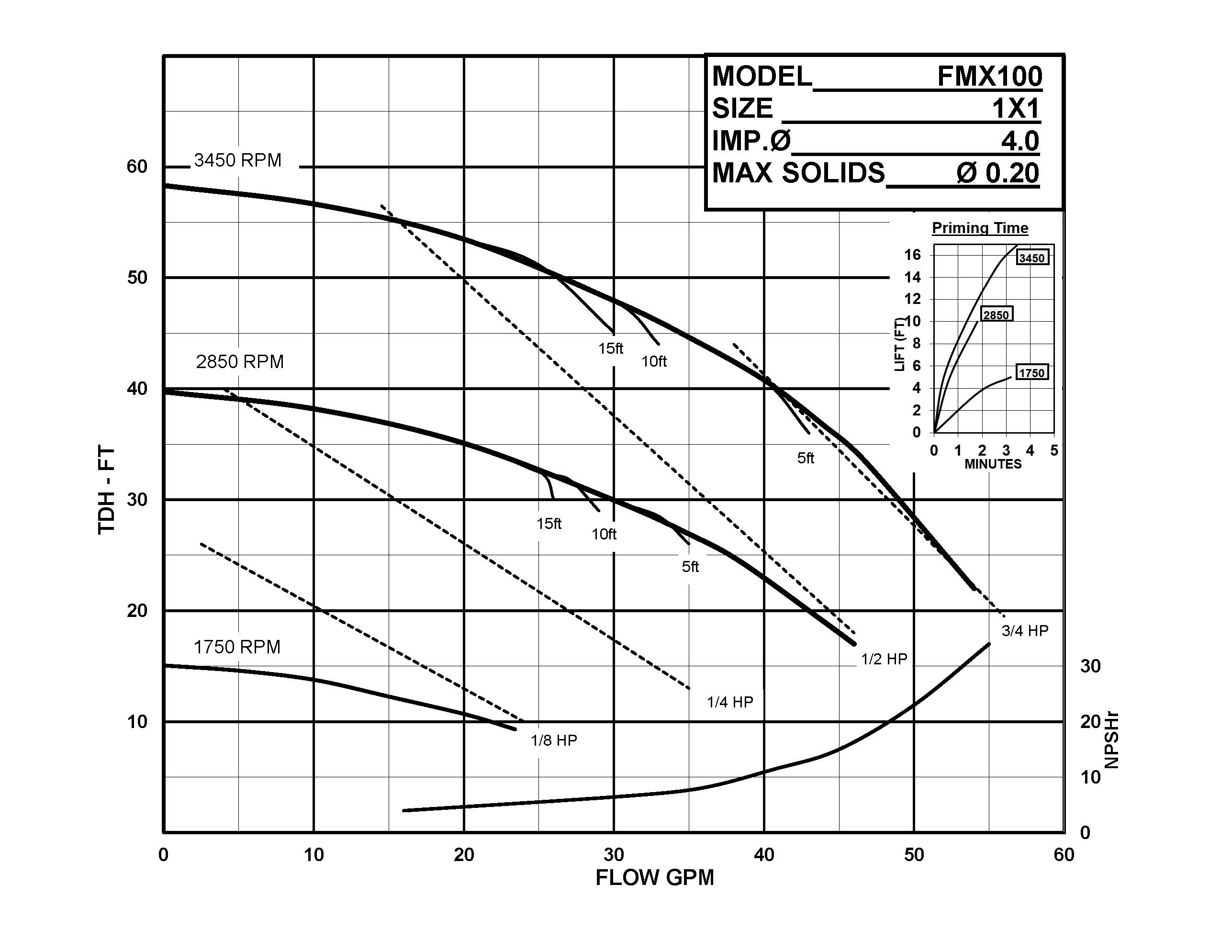

The FMX 100 is designed as a compact yet powerful self‑priming centrifugal pump capable of achieving flow rates up to 55 GPM (12 m³/h) and developing heads up to 60 ft (18 m). Operating at 3450 RPM, it ensures fast priming and stable performance even in installations with challenging suction conditions – offering suction lift capabilities up to 17 ft (5.2 m).
The hydraulic housing and internal components are manufactured from 316 stainless steel, providing superior resistance to corrosive fluids such as brines, chemical solutions, and marine‑related liquids. The 4.0" (101.6 mm) impeller is engineered for optimal efficiency and consistent flow, while the Type 6A carbon/ceramic/Viton mechanical seal ensures reliable leak protection under aggressive environmental conditions.

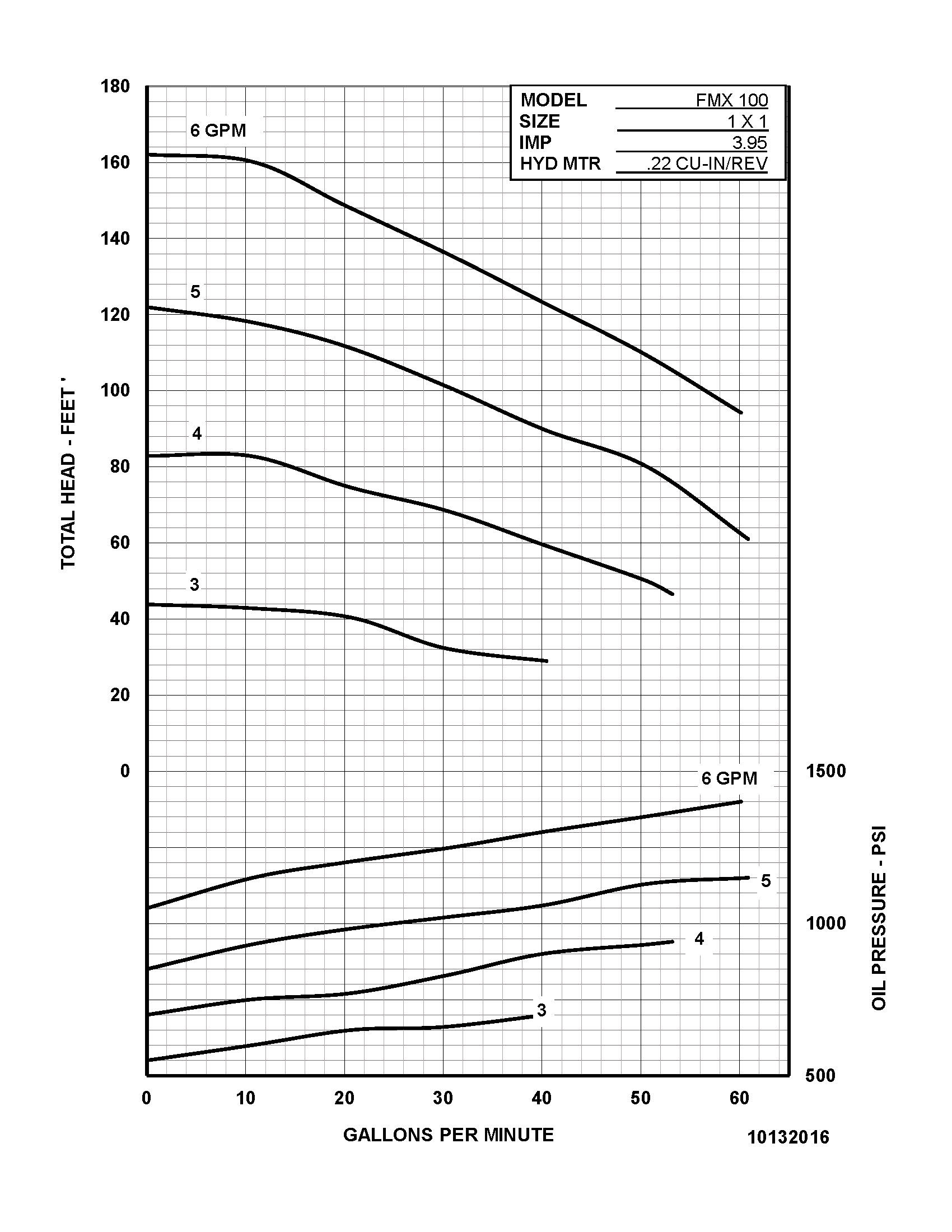

The FMX 100 is available with multiple drive options, including close‑coupled TEFC IEC80B34 electric motors (¾ HP and 1 HP), engine‑mount options for 5/8" shafts, pedestal configurations, and hydraulic drive variants (0.22 cu in displacement). This flexibility makes it ideal for integration into diverse installations across construction sites, HVAC marine systems, DEF transfer systems, agricultural operations, and industrial process applications.
ABS Type Approval further confirms the pump's compliance with stringent marine safety and quality standards, making the FMX 100 suitable for mission‑critical workboats, support vessels, and marine‑industrial settings.
