Commercial vessels and complex Marine systems depend on reliable fluid transfer under changing operating conditions. Bilge pumping, ballast transfer, deck washdown, auxiliary fire protection, and general seawater transfer can require higher capacities, suction-lift capability, flexible drive arrangements, and dependable service access.

MP Pumps offers commercial marine water pump solutions based on self-priming centrifugal technology. Multiple sizes, materials, and drive configurations help boatbuilders, shipyards, system integrators, and vessel operators match the pump to the application.

Keep critical vessel systems moving with Marine pump solutions engineered for dependable flow.

Dependable Fluid Transfer for Demanding Marine Systems

Commercial Marine pumps may need to operate under changing suction conditions, limited installation space, continuous or intermittent duty, and exposure to challenging fluids and environments.

Selecting a pump involves more than identifying a maximum flow rate. System designers must also consider suction lift, total head, drive method, available space, construction materials, seals, service access, and the complete operating environment.

MP Pumps provides self-priming centrifugal solutions for Marine applications that require reliable priming, continuous flow, flexible installation, and serviceable construction.

High-Capacity Flow. Flexible Configurations. Dependable Priming.

  • Self-priming centrifugal technology
  • Flow capabilities up to 750 GPM
  • Suction lift up to 25 feet on the referenced self-priming portfolio
  • Multiple materials of construction
  • Engine, electric motor, hydraulic, pedestal, and clutch-drive options
  • Service-oriented pump construction

The referenced MP Pumps portfolio identifies self-priming models with flow up to 750 GPM, head up to 225 feet, suction lift up to 25 feet, sizes up to four inches, and cast iron, bronze, and stainless-steel options. Final performance depends on the selected model and operating conditions.

FLOMAX Self-Priming Centrifugal Pumps

FLOMAX pumps are engineered for applications where suction lift and air evacuation are important to reliable fluid transfer.

The rotating impeller moves fluid through the pump while the priming system helps evacuate air from the suction line. Once primed, the pump provides continuous centrifugal flow for Marine transfer applications.

Referenced FLOMAX Marine applications include:

  • Bilge pumping
  • Ballast transfer
  • Auxiliary fire systems
  • Deck washdown

FLOMAX performance overview

  • Six referenced performance sizes
  • Flow up to 750 GPM
  • Head capability up to 230 feet in the referenced Marine brochure
  • Cast iron construction
  • Bronze options on selected models
  • Aluminum options on selected models
  • Stainless-steel options on selected models
  • Stainless-steel shaft sleeve and fasteners
  • Standard and optional mechanical seal choices
  • Multiple drive and mounting configurations

The broader MP Pumps product overview lists self-priming pumps with flow up to 750 GPM, head up to 225 feet, and suction lift up to 25 feet. Because the internal sources state different maximum head values, use only model-specific published curves for final product selection and confirm the value before publication.

Explore FLOMAX Self-Priming Pumps
MP Designer

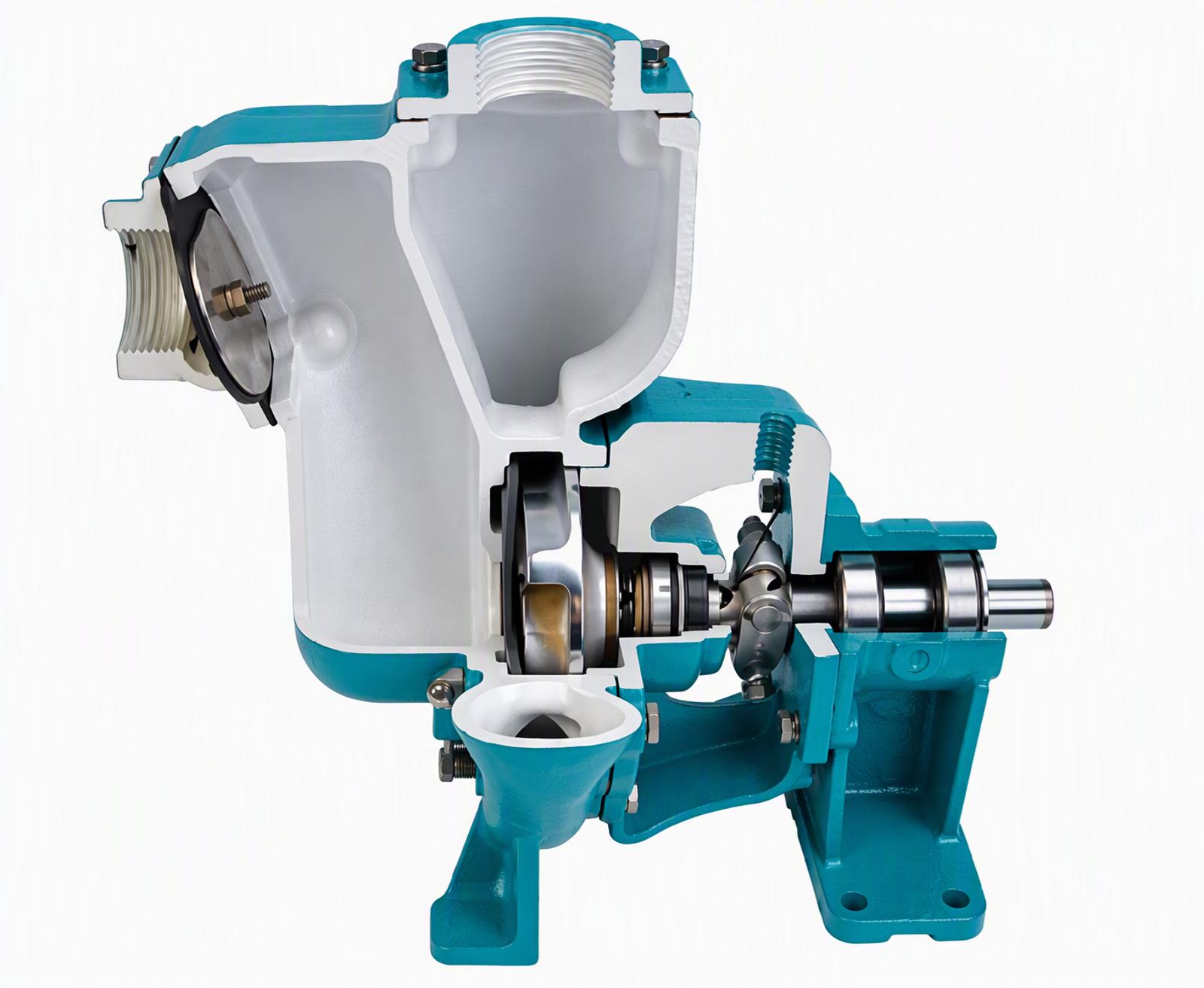

Serviceable Pump Design

Downtime and difficult maintenance access can create significant operating challenges on commercial vessels. FLOMAX incorporates features intended to simplify inspection, servicing, and component replacement.

Removable Flanges

Connected piping can remain in place while the pump is serviced.

Replaceable Wear Plate

The wear plate helps protect the pump housing and allows the pump end to be refurbished.

Open Seal Cavity

The open seal cavity is designed to help keep solids from damaging seal components.

Suction Check Valve

The suction check valve maintains priming fluid in the inlet pipe and helps prevent reverse siphoning.

Back Pull-Out PumpPak Design

The pump end can be configured with different engines, motors, hydraulic drives, and clutch arrangements.

Stainless-Steel Drive Sleeve

The drive sleeve helps protect the driver from wear and corrosion while separating pumped fluid from external contact.

Balanced Impeller

The dynamically balanced impeller is intended to support bearing life and is available in different trim diameters for reduced-flow and reduced-horsepower applications.

Flexible Drive and Installation Options

Marine pump installations vary according to available power, space, duty, and vessel design. FLOMAX offers multiple configurations to support fixed and mobile pumping systems.

Engine Drive

Suitable where independent operation or engine power is required.

Electric Motor Drive

Suitable for fixed systems with an available electrical supply.

Hydraulic Drive

Suitable for equipment and vessels using hydraulic power systems.

Pedestal Mount

Supports long-coupled arrangements and integration with selected drive systems.

Clutch-Driven Configuration

Supports systems requiring controlled engagement with the drive source.

PumpPak Configuration

Supports NEMA C-face motor mounting and interchangeability across selected drive arrangements.

Final drive selection should consider available power, operating environment, speed, control requirements, and the complete system design. The referenced Marine brochure explicitly identifies engine, electric motor, pedestal, hydraulic, clutch, and PumpPak mounting options.

MP HHL

Why Choose MP Pumps for Commercial Marine Applications?

Higher-Capacity Fluid Transfer

The self-priming portfolio includes configurations with flow up to 750 GPM for demanding transfer applications.

Self-Priming Performance

Self-priming technology supports applications where the pump operates above the liquid level or where air may enter the suction line.

Installation Flexibility

Multiple drive, mounting, material, and seal arrangements help pump configurations adapt to different vessel systems.

Service-Oriented Design

Removable flanges, replaceable wear components, an accessible seal cavity, and back pull-out construction support practical servicing.

Application-Specific Selection

Bilge, ballast, washdown, auxiliary fire, cooling, and general transfer systems present different flow, pressure, priming, construction, and operating requirements.

Industrial Pumping Experience

MP Pumps serves Marine as well as industrial, agricultural, transportation, chemical-processing, petroleum, heating, cooling, OEM, and general industrial applications.
MP commercial vessel

Start with Your Commercial Marine Application

Choosing the right Marine pump begins with the vessel system and operating requirements.

1. Identify the application

  • Bilge pumping
  • Ballast transfer
  • Auxiliary fire protection
  • Deck washdown
  • Cooling or circulation
  • Solid-laden sump transfer
  • Black-water transfer
  • General water transfer

2. Define the fluid

  • Seawater
  • Bilge water
  • Ballast water
  • Fresh water
  • Gray water
  • Black water
  • Solids-containing water
  • Other compatible fluid

3. Confirm the operating conditions

  • Required flow
  • Required pressure or total dynamic head
  • Suction lift
  • Fluid temperature
  • Solids content
  • Continuous or intermittent duty
  • Available drive source
  • Motor or engine speed
  • Installation space
  • Preferred construction material
  • Seal requirements
  • Maintenance access
Get Pump Selection Support

Frequently Asked Questions About Commercial Marine Pumps

A self-priming bilge pump evacuates air from the suction line to establish fluid flow without requiring the pump inlet to remain continuously flooded. Before operation, the pump casing must be filled according to the manufacturer’s instructions. Final selection depends on the expected inflow, required capacity, suction lift, total head, fluid content, piping, and vessel-system requirements.

Keep Critical Commercial Marine Systems Flowing

Commercial marine fluid-transfer systems require careful evaluation of capacity, suction conditions, drive method, construction materials, seals, installation, and service requirements. MP Pumps offers self-priming centrifugal solutions for demanding applications, including self-priming bilge pumps, ballast transfer pumps, marine washdown pumps, auxiliary fire pumps, and marine water pumps for cooling and general transfer. Connect with our team to identify the appropriate pump model, materials, drive arrangement, and operating configuration for your vessel system.
