Our significant design improvements provide superior value, durability and performance. The MAX EB features a Baldor TEFC marine duty motor that is epoxy coated for superior rain damage resistance. The cast iron pump end is treated with Durakorr-the industries best wear and corrosion resistance available. Stainless steel impellers and Type 21 Carbon/Ceramic/Viton seals are standard in the MAX EB series of pumps.
APPLICATION | Agricultural |
FLOW | Up to 200 GPM |
HEAD FEET | Up to 80 TDH |
IMPELLER | Stainless Steel Enclosed |
MOTOR | 2HP Epoxy coated marine duty TEFC motor with automatic thermal overload |
SEAL | Type 21 Carbon/Ceramic/Viton |
SUCTION | 2.5” |
MOUNTING OPTIONS | Vertical Close coupled |
HOUSING | Cast Iron Treated with Durakorr |
DISCHARGE | 2” |

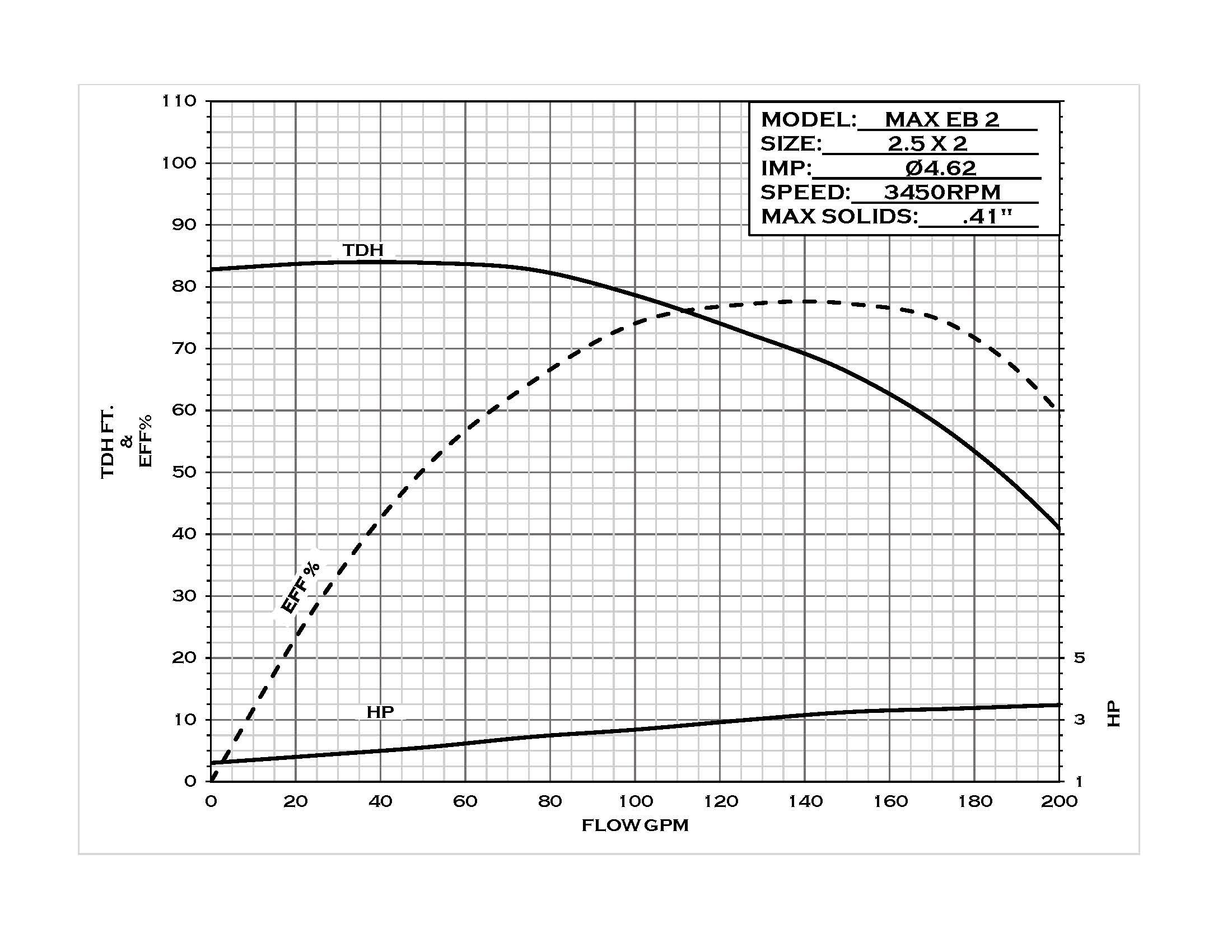

Flow Curve
Model: MAX EB 2
Size: 2.5x2
Imp: Ø4.62
Speed: 3450 RPM
Max Solids: .41""
Size: 2.5x2
Imp: Ø4.62
Speed: 3450 RPM
Max Solids: .41""
